MYPIN Portable Cordless Pressure Washer CE0413 User Manual

1. Танилцуулга

Thank you for choosing the MYPIN Portable Cordless Pressure Washer, Model CE0413. This device is designed for efficient and convenient cleaning of various surfaces, including vehicles, floors, walls, and fences. Its cordless design and adjustable pressure settings provide versatility for different cleaning tasks. Please read this manual thoroughly before operation to ensure safe and effective use.

2. Аюулгүй ажиллагааны заавар

• Always wear appropriate safety gear, including eye protection, when operating the pressure washer.
• Keep hands, face, and body parts away from the spray nozzle during operation. The high-pressure water stream can cause injury.
• Do not direct the water stream at people, pets, or electrical equipment.
• Ensure the battery is fully charged before use and properly inserted into the device.
• Disconnect the battery when the pressure washer is not in use or during maintenance.
• Use only clean water with the pressure washer. Do not use corrosive liquids or solvents.
• Төхөөрөмжийг хүүхдэд хүрэхгүй газар хадгална уу.
• Inspect the hose, nozzle, and connections for damage before each use. Do not operate if any components are damaged.

3. Багцын агуулга

Доор жагсаасан бүх зүйл таны багцад байгаа эсэхийг шалгаарай.

• 1 x Cordless High-Pressure Washer
• 2 x Lithium-Ion Batteries (3.0Ah)
• 1 x Цэнэглэгч залгуур
• 1 x Suitcase for storage
• 1 x 5-meter (196-inch) PVC Hose
• 1 x 6-in-1 цорго
• 1 x Foam Bottle
• 1 x Towel
• 1 x Bottle Connector
• 1 x Түргэн холбогч
• 1 x Усны шүүлтүүр
• 1 х хэрэглэгчийн гарын авлага

Зураг: Дууслааview of all included accessories and the pressure washer unit.

4. Тохируулах заавар

Даралтат угаагчийг анх удаа ашиглахад тохируулахын тулд дараах алхмуудыг дагана уу.

1. Батерейг цэнэглэх: Connect the charging plug to the battery and a power outlet. The indicator light will be red during charging and turn green when fully charged.
2. Connect the Water Filter: Insert the water filter into one end of the PVC hose. This filter prevents impurities from entering the pump.
3. Install Quick Connector: Attach the quick connector to the other end of the PVC hose.
4. Attach Hose to Sprayer Gun: Connect the quick connector on the hose to the inlet on the sprayer gun.
5. Цорго суурилуулах: Press and twist the desired 6-in-1 nozzle onto the sprayer gun.
6. Батерейг оруулах: Slide a fully charged battery into the battery slot on the pressure washer handle until it clicks into place.
7. Усны эх үүсвэрийг бэлтгэх: Place the end of the PVC hose with the water filter into a bucket of water or a water pool. Ensure the filter is fully submerged.

Image: Visual guide for connecting the water filter, hose, quick connector, nozzle, and battery.

Image: Illustration of the battery charger with red light indicating charging and green light indicating full charge.

Image: Demonstrates using a water bucket or a water pool as a source for the pressure washer.

5. Ашиглалтын заавар

Once assembled and connected to a water source, you can begin operation:

1. Асаах: Press the power button on the handle. The LCD display will illuminate.
2. Adjust Pressure Mode: Use the touch screen on the LCD display to adjust the pressure mode from 1 to 10. Press '+' to increase pressure and '-' to decrease pressure. The display also shows battery percentage.
3. Select Nozzle Spray Pattern: Rotate the head of the 6-in-1 nozzle to select the desired spray pattern: 0° (direct stream for stubborn stains), 15°, 25°, 40° (wider spray for general cleaning), Upward (for hard-to-reach areas like undercarriages), or Shower (for gentle rinsing or watering plants).
4. Цэвэрлэгээг эхлүүлэх: Aim the nozzle at the surface to be cleaned and press the trigger to start the water flow. Release the trigger to stop.
5. Using the Foam Bottle: For foam cleaning, fill the foam bottle with detergent and attach it to the sprayer gun. The pressure washer will mix the detergent with water to create foam.

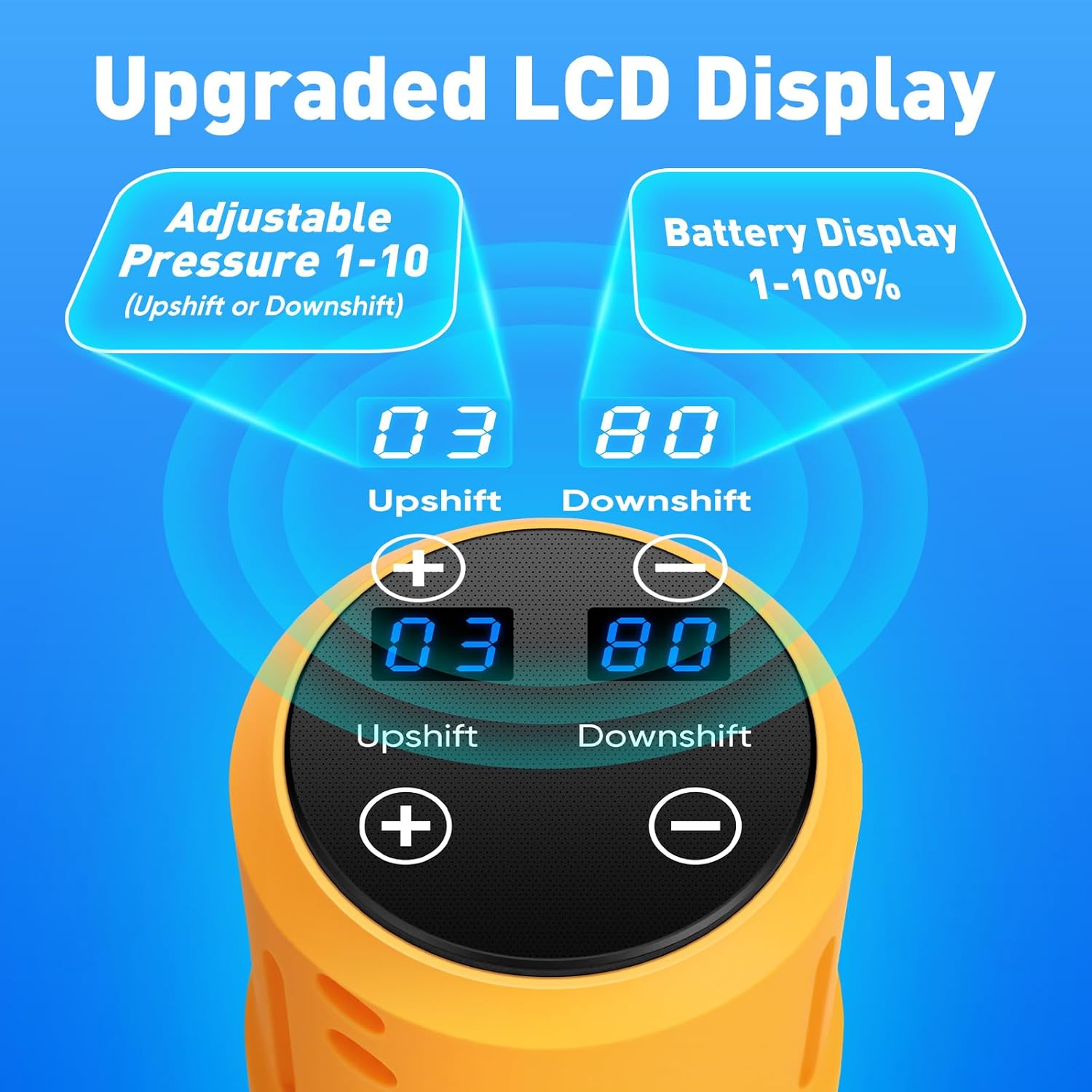

Image: The LCD display allows for easy adjustment of pressure modes (1-10) and shows battery percentage.

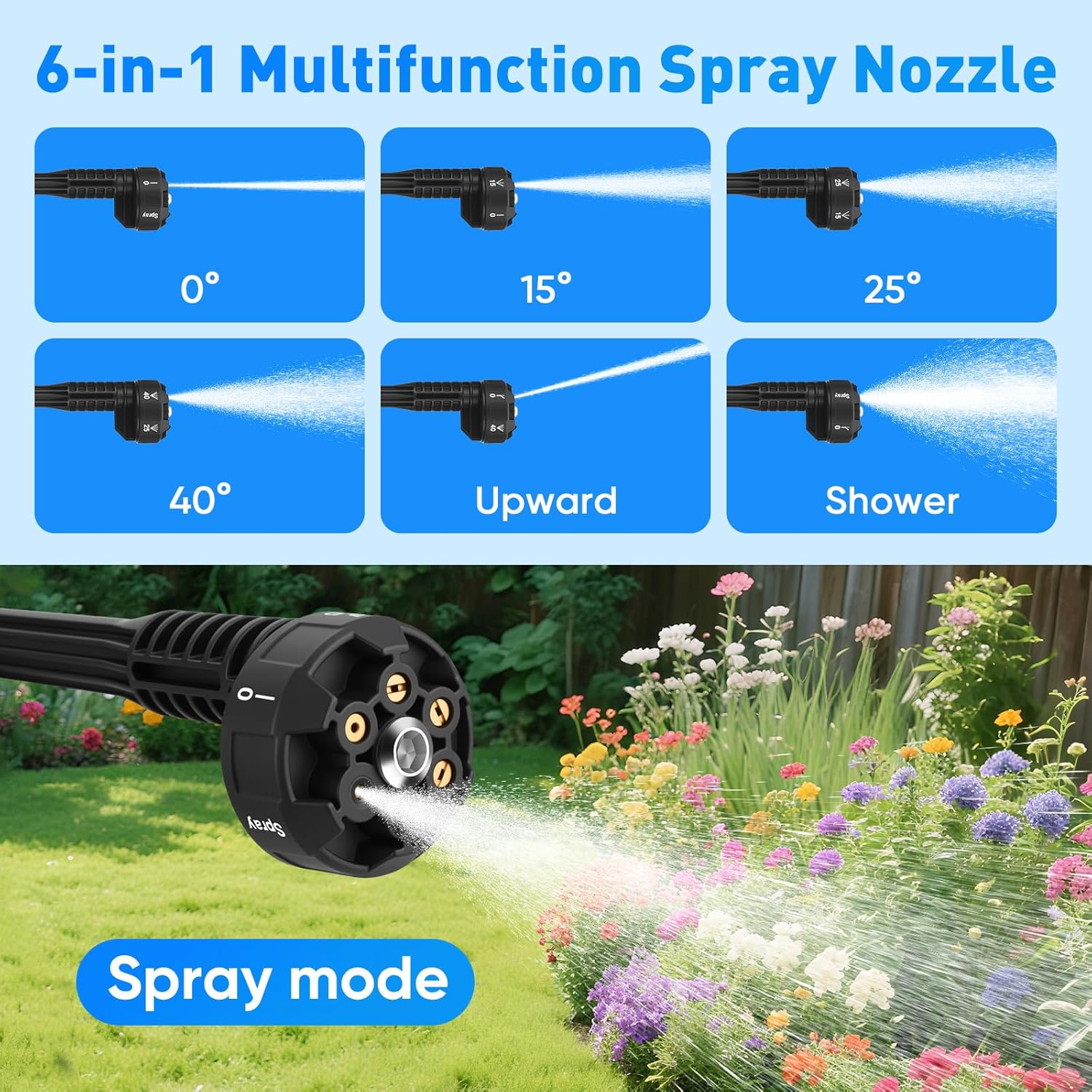

Image: The 6-in-1 nozzle offers various spray modes including 0°, 15°, 25°, 40°, upward, and shower for diverse cleaning needs.

Image: The foam bottle can be used to apply detergent for deeper cleaning, drawing water from a bucket or pool.

6. Засвар үйлчилгээ

Тогтмол засвар үйлчилгээ нь оновчтой ажиллагааг хангаж, даралтат угаагчийн ашиглалтын хугацааг уртасгадаг:

• Цэвэр усны шүүлтүүр: Regularly remove and clean the water filter to prevent clogging and protect the pump from impurities.
• Хэрэглэсний дараа зайлах: After using detergents or chemicals, run clean water through the pressure washer for a few minutes to flush out any residue.
• Зөв хадгалах: Store the pressure washer and its accessories in the provided suitcase in a dry, cool place, away from direct sunlight and freezing temperatures.
• Батерейны арчилгаа: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Charge them periodically if not used for extended periods.

Image: The water filter effectively removes leaves, sediment, and other impurities to protect the pressure washer.

7. Алдаа засах

Хэрэв танд асуудал тулгарвал дараах нийтлэг асуудал, шийдлүүдийг үзнэ үү.

• Усны урсгал байхгүй:
  • Ensure the water filter is submerged and not clogged.
  • Check that all hose connections are secure.
  • Verify the battery is charged and properly inserted.
• Бага даралт:
  • Check the selected pressure mode on the LCD display; increase if necessary.
  • Ensure the water filter is clean and not restricting water flow.
  • Verify the water source has sufficient volume.
• Төхөөрөмж асахгүй байна:
  • Батерейг бүрэн цэнэглэсэн эсэхийг шалгана уу.
  • Ensure the battery is correctly inserted and locked into place.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

For warranty information, technical support, or service inquiries, please contact the manufacturer or refer to the product's original purchase documentation. Specific warranty terms and conditions may vary.
