JEYI NVMe M.2 to 5-Port SATA Adapter (Model: PCIe M.2 5xSATA) Instruction Manual

1. Оршил ба түүнээс дээшview

The JEYI NVMe M.2 to 5-Port SATA Adapter is designed to expand the storage capabilities of your system by converting a single M.2 NVMe slot into five SATA III 6GB/s ports. This adapter is ideal for NAS, server, and desktop PC applications requiring additional SATA connectivity for SSDs and HDDs. It features a built-in JMB585 chip for reliable performance and includes a heatsink for optimal thermal management.

Figure 1.1: JEYI NVMe M.2 to 5-Port SATA Adapter with Heatsink.

Figure 1.2: Comparison of New and Old PCB Versions. The new version incorporates design improvements based on user feedback.

2. Бүтээгдэхүүний онцлог

• Adds 5 SATA III 6GB/s ports via an M.2 NVMe slot.
• Supports PCIe 3.0 x2 interface, providing an uplink speed of up to 1700 MB/s.
• Plug and play functionality; no driver installation required.
• Supports UASP (USB Attached SCSI Protocol) and TRIM commands.
• Compliant with PCI Express specification Ver.3.1a.
• Compliant with SATA specification version 3.2.
• Supports 5-drive software RAID group (requires motherboard/OS support).
• Supports command-based and FIS-based port doubling.
• Supports PCI Express Physical Layer power saving mode.
• Supports AHCI mode and IDE programming interface.
• Supports Native Command Queuing (NCQ).
• Supports SATA power saving mode (partial and hibernation).
• Integrated aluminum heatsink for enhanced thermal performance.

Figure 2.1: Key features of the JEYI NVMe M.2 to 5-Port SATA Adapter.

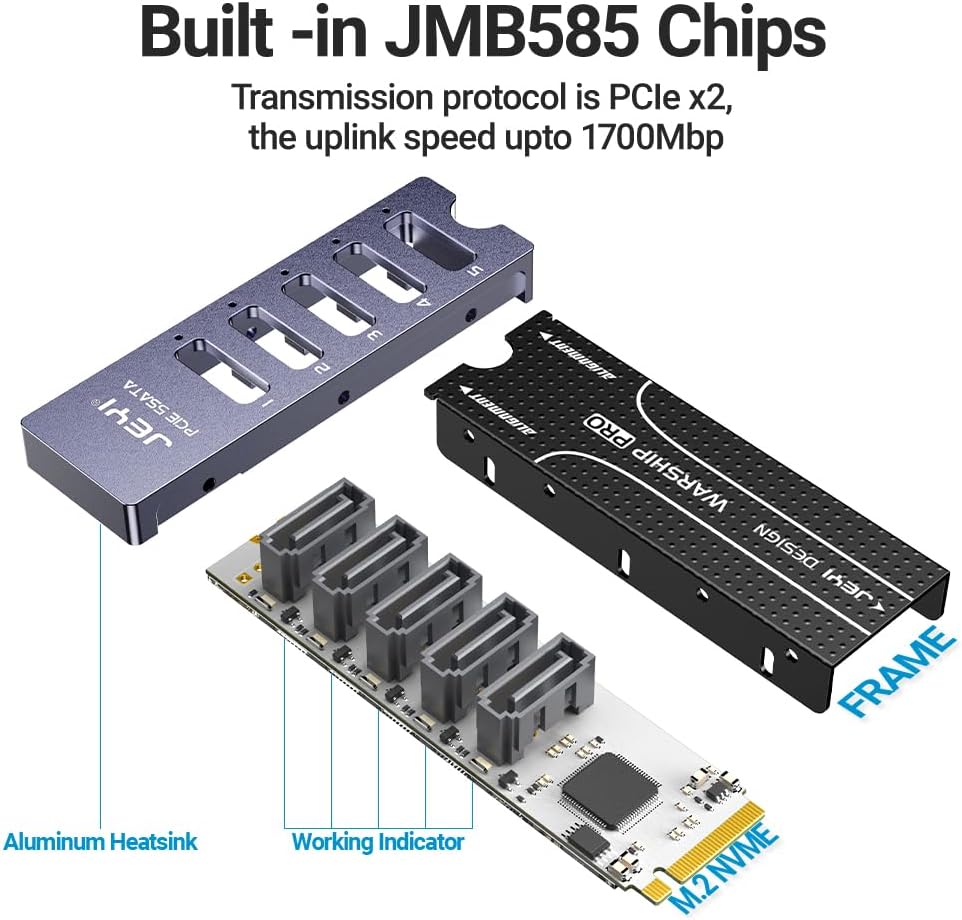

Зураг 2.2: Тэсэрсэн view illustrating the JMB585 chip, aluminum heatsink, and working indicators.

3. Багцын агуулга

Багцыг нээхдээ бүх зүйл байгаа, сайн нөхцөлд байгаа эсэхийг шалгана уу.

• JEYI NVMe M.2 to 5-Port SATA Adapter Card (with heatsink assembly)
• Суурилуулах эрэг
• Screwdriver (for assembly/disassembly)

Figure 3.1: Included components: Adapter PCB, heatsink components, screwdriver, and mounting screws.

4. Тохиргоо ба суурилуулалт

Чухал: Before beginning installation, ensure your computer is powered off and disconnected from the power source. It is recommended to wear an anti-static wrist strap to prevent damage to electronic components.

4.1 Системийн шаардлага

• Available M.2 NVMe slot (M-key, PCIe 3.0 x2 or higher).
• Motherboard support for M.2 PCIe Bifurcation is highly recommended for optimal performance and recognition of all 5 SATA drives. Without bifurcation support, your system may only recognize a limited number of drives. Consult your motherboard manual for details.
• Operating System: Windows 7/8/8.1/10 (32 & 64bit), Linux.

4.2 Суурилуулалтын үе шатууд

1. Адаптерийг бэлтгэх: If the heatsink is not pre-assembled, carefully attach the aluminum heatsink to the adapter PCB using the provided screws. Ensure proper alignment.
2. M.2 үүрийг олох: Open your computer case and locate an available M.2 NVMe slot on your motherboard.
3. Адаптерийг оруулна уу: Gently insert the JEYI NVMe M.2 to 5-Port SATA Adapter into the M.2 slot at a 30-degree angle. Push down the adapter until it is parallel with the motherboard.
4. Адаптерийг бэхлэх: Secure the adapter with the M.2 mounting screw provided with your motherboard or the adapter kit.
5. SATA хөтчүүдийг холбох: Connect your SATA SSDs or HDDs to the five SATA ports on the adapter using standard SATA data cables. Ensure the cables snap securely into place.
6. Эрчим хүч өгөх: Ensure all connected SATA drives receive adequate power from your power supply unit (PSU).
7. Кейс хааж, асаалттай: Close your computer case, reconnect the power, and power on your system.

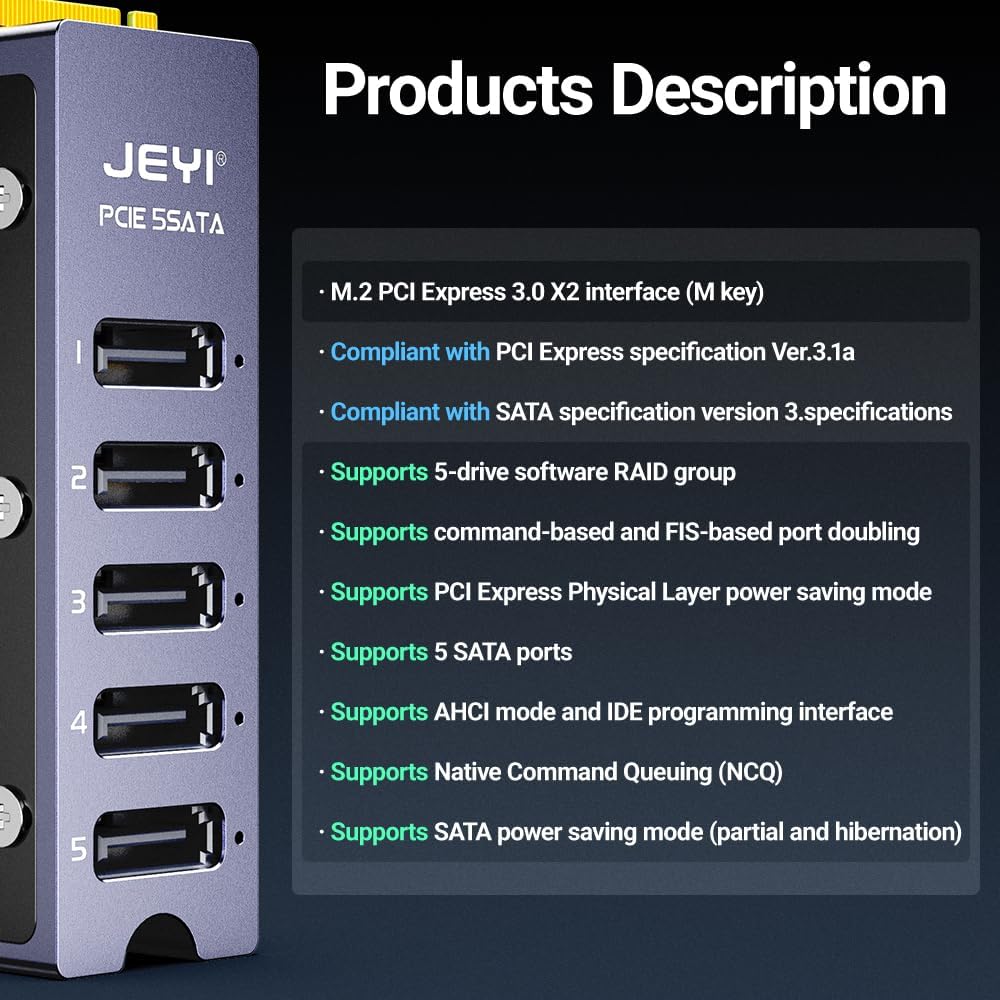

Зураг 4.1: Хажуу тал view of the adapter, highlighting the M.2 connector for motherboard insertion.

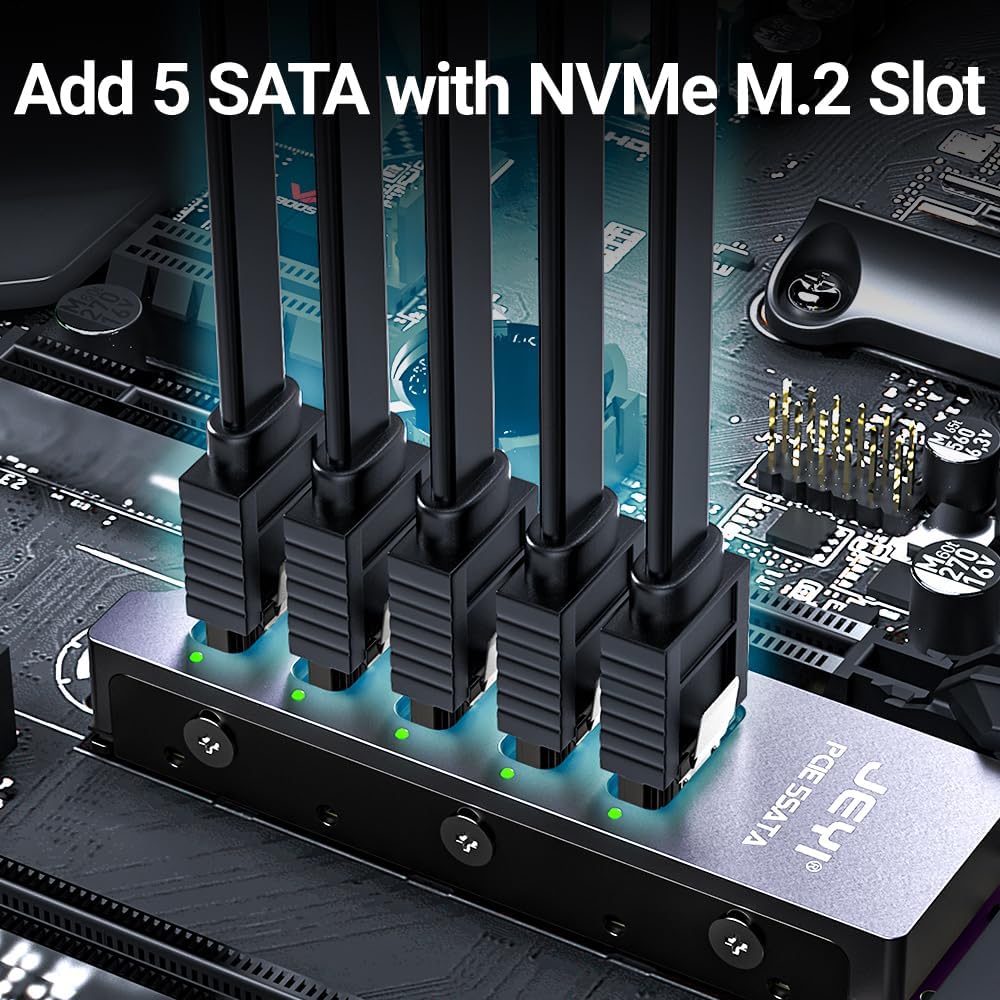

Figure 4.2: The adapter with five SATA data cables connected to the ports.

5. Ашиглалтын заавар

Once installed, the JEYI NVMe M.2 to 5-Port SATA Adapter operates as a standard SATA controller. Your operating system should automatically detect the new SATA ports and any connected drives without requiring additional drivers.

• Драйв таних: After booting, check your operating system's Disk Management (Windows) or disk utility (Linux) to verify that all connected drives are recognized.
• Драйвуудыг форматлах: New drives will need to be initialized, partitioned, and formatted before use.
• Програм хангамжийн RAID: If you intend to use a software RAID configuration, refer to your operating system's documentation for setting up RAID groups. The adapter supports 5-drive software RAID groups, but this functionality is managed by the operating system, not the adapter itself.
• Гүйцэтгэл: The adapter supports SATA III speeds up to 6GB/s per port, with a total uplink bandwidth of 1700 MB/s via PCIe 3.0 x2. Actual performance may vary based on your system configuration and connected drives.

Figure 5.1: Illustration of 6Gbps data transfer capability per SATA port.

6. Засвар үйлчилгээ

The JEYI NVMe M.2 to 5-Port SATA Adapter is designed for long-term, reliable operation with minimal maintenance. Follow these guidelines:

• Цэвэр байлгах: Periodically inspect the adapter for dust accumulation, especially around the heatsink fins. Use compressed air to gently remove dust.
• Аюулгүй холболтууд: Ensure all SATA data and power cables remain securely connected to prevent intermittent drive issues.
• Байгаль орчны нөхцөл: Operate the adapter within standard computer operating temperatures and humidity levels.

7. Алдаа засах

If you encounter issues with your JEYI NVMe M.2 to 5-Port SATA Adapter, refer to the following troubleshooting steps:

• Драйвууд илрээгүй байна:
  • Check M.2 Bifurcation: Verify that your motherboard supports M.2 PCIe Bifurcation. Without this feature, not all 5 drives may be recognized. Consult your motherboard manual or BIOS settings.
  • Аюулгүй холболтууд: Ensure all SATA data and power cables are firmly connected to both the adapter and the drives.
  • Эрчим хүчний хангамж: Confirm that your power supply unit (PSU) has sufficient wattage and available power connectors for all connected drives.
  • Adapter Seating: Re-seat the M.2 adapter firmly into its slot on the motherboard.
  • BIOS/UEFI тохиргоо: Check your system's BIOS/UEFI settings to ensure the M.2 slot is enabled and configured correctly (e.g., set to PCIe mode if applicable).
• Удаан гүйцэтгэл:
  • Кабелийн чанар: Use high-quality SATA III cables.
  • Жолооны эрүүл мэнд: Check the health and performance of your individual SSDs/HDDs.
  • Системийн ачаалал: High system load or other active storage devices can impact performance.
• Хөтчийн тасалдал:
  • Кабелийн бүрэн бүтэн байдал: Inspect SATA cables for damage. Replace if necessary.
  • Эрчим хүчний тогтвортой байдал: Ensure stable power delivery to the drives.
  • Thermal Issues: While the adapter has a heatsink, ensure adequate airflow within your PC case to prevent overheating of components.

8. Техникийн үзүүлэлтүүд

Figure 8.1: Physical dimensions of the JEYI NVMe M.2 to 5-Port SATA Adapter.

9. Баталгаат хугацааны мэдээлэл

JEYI products typically come with a limited warranty. Specific warranty terms, conditions, and duration may vary by region and retailer. Please refer to the warranty card included with your purchase or visit the official JEYI website for the most current warranty information. Keep your proof of purchase for warranty claims.

10. Дэмжлэг

For technical assistance, product inquiries, or further support, please contact JEYI customer service through the following channels:

• Албан ёсны Webсайт: Visit the JEYI official website for FAQs, driver downloads (if applicable), and contact information.
• Жижиглэн худалдааны дэмжлэг: Contact the retailer from whom you purchased the product for initial support or return/exchange policies.

When contacting support, please have your product model number (PCIe M.2 5xSATA) and proof of purchase readily available.
