Танилцуулга
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Devola DVF100T 100mm Extractor Fan. Please read these instructions carefully before installation and retain them for future reference. This extractor fan is designed for effective ventilation in bathrooms and kitchens, helping to reduce humidity, odors, and damp агаар.

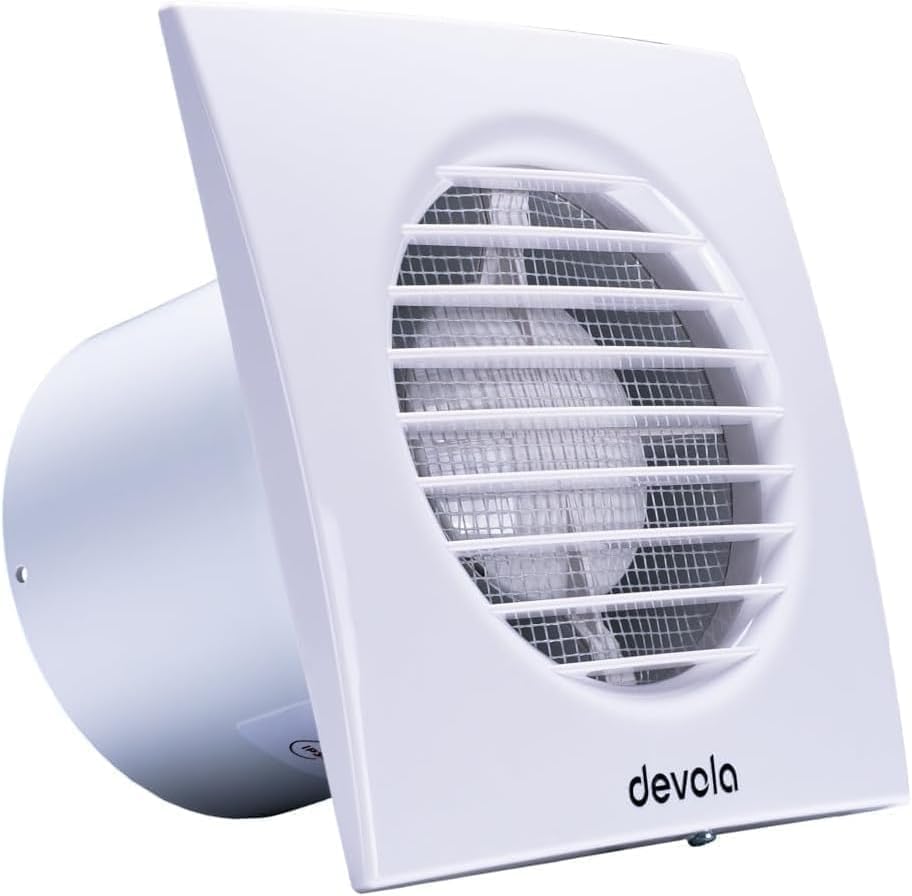

A white Devola 100mm extractor fan with a square front grille and a circular fan housing extending from the back. The Devola logo is visible on the bottom right of the front panel. A pull cord is visible on the bottom left.
Тохиргоо ба суурилуулалт
Installation of this electrical appliance should only be carried out by a qualified electrician in accordance with current wiring regulations and building codes. Ensure the power supply is disconnected before commencing any installation work.
Байршилд анхаарах зүйлс
The Devola DVF100T extractor fan is suitable for installation in humid environments such as bathrooms and kitchens. For bathroom installations, it can be placed in Zone 2 or Zone 3, as defined by electrical safety regulations. Avoid installing directly above a shower or bath unless specifically rated for Zone 1.
An illustrative diagram depicting a bathroom layout with a shower, toilet, and sink, marked with numbers (2 and 3) indicating suitable zones for extractor fan installation according to electrical safety regulations.
Суурилуулалт
- Choose a suitable wall or ceiling location, ensuring adequate space for the fan body and ducting.
- Cut a circular hole of 100mm (4 inches) diameter for the fan spigot.
- Secure the fan body to the mounting surface using appropriate fixings.
Цахилгаан холболт
- Ensure the mains power supply is isolated at the consumer unit.
- Connect the fan to a suitable switched fused spur, following the wiring diagram provided with the product packaging.
- The fan requires a 230V AC supply.
Урд view of the Devola standard extractor fan, showing its square white grille and circular fan blades behind a mesh cover. The Devola logo is at the bottom.
Ашиглалтын заавар
The Devola DVF100T extractor fan is operated via an integrated pull cord. To activate the fan, gently pull the cord downwards. To switch the fan off, pull the cord again. The fan will begin to extract air from the room, improving air quality and reducing humidity.
For optimal performance, operate the fan during and after activities that generate moisture or odors, such as showering, bathing, or cooking.
Өнцөг view of the Devola 100mm extractor fan, similar to the main image, with a 'British Brand' circular badge overlaid, emphasizing its UK manufacturing.
Засвар үйлчилгээ
Regular cleaning will ensure the longevity and efficient operation of your extractor fan.
- Цахилгааныг салгах: Always ensure the fan's power supply is completely disconnected at the mains before attempting any cleaning or maintenance.
- Цэвэр гадна тал: Сэнсний гаднах гадаргууг зөөлөн, damp даавуу. Хуванцар өнгөлгөөг гэмтээж болзошгүй тул зүлгүүрийн цэвэрлэгч, уусгагч эсвэл хүчтэй химийн бодис бүү хэрэглэ.
- Clean Grille and Blades: Carefully remove the front grille (if detachable) and gently clean any dust or debris from the grille and fan blades using a soft brush or vacuum cleaner. Ensure no moisture enters the electrical components.
- Дахин угсрах: Once clean and dry, reattach the grille and restore power to the fan.
Алдааг олж засварлах
If you experience issues with your Devola DVF100T extractor fan, please consult the following common problems and solutions:
- Сэнс ажиллахгүй байна:
- Check if the power supply to the fan is switched on at the fused spur.
- Ensure the pull cord has been operated correctly.
- Verify that the circuit breaker or fuse for the fan's circuit has not tripped or blown.
- Fan is excessively noisy:
- Check for any obstructions in the fan's impeller or ducting.
- Ensure the fan is securely mounted and not vibrating against the wall or ceiling.
- Dust buildup on the blades can cause imbalance; refer to the maintenance section for cleaning.
- Олборлолтын гүйцэтгэл муу:
- Ensure the fan grille and blades are clean and free from dust.
- Check that the external vent is not blocked.
- Verify that the ducting is clear and not kinked or obstructed.
If these steps do not resolve the issue, please contact a qualified electrician or Devola customer support.
An image showing a couple in a kitchen, with four circular icons below illustrating problems solved by the extractor fan: musty smell, humidity, damp air, and fungus, each marked with a red 'X'.
Үзүүлэлтүүд
| Онцлог | Тодорхойлолт |
|---|---|
| Брэнд | Девола |
| Загварын дугаар | DVF100T |
| Бүтээгдэхүүний хэмжээ (L x W x H) | 13.7 x 13.7 x 17 см |
| Зүйлийн жин | 580 грамм |
| Хүч | 14 ватт |
| Ботьtage | 230 вольт (AC) |
| Дуу чимээний түвшин | 34 дБ |
| Цахилгаан сэнсний дизайн | Экстракторын сэнс |
| Хяналтын арга | Татах утас |
| Сэлбэг хэрэгслийн бэлэн байдал | Сэлбэг хэрэгслийн талаар мэдээлэл алга |
| Анхны огноог Amazon.com.be дээрээс авах боломжтой | 16 оны тавдугаар сарын 2025 |
Баталгаат хугацааны мэдээлэл
Specific warranty details for the Devola DVF100T extractor fan are typically provided with the product packaging or available on the manufacturer's official website. Please refer to these sources for comprehensive information regarding warranty periods, terms, and conditions.
Хэрэглэгчийн дэмжлэг
For further assistance, technical support, or inquiries regarding your Devola DVF100T extractor fan, please visit the official Devola website or contact their customer service department. Contact details are usually provided in the product packaging or on the manufacturer's webсайт.
