NEU MASTER NSG0110-US500-1 Electric Paint Sprayer

1. Бүтээгдэхүүн дууссанview

The NEU MASTER NSG0110-US500-1 Electric Paint Sprayer is designed for efficient and smooth application of various paints and coatings. This handheld sprayer features a powerful 500W motor, a 1200ML container, and multiple nozzle sizes to accommodate different project needs. Its adjustable spray patterns and material flow control allow for precise application on surfaces such as walls, furniture, fences, and cabinets.

Figure 1: NEU MASTER Electric Paint Sprayer in use.

2. Аюулгүй байдлын чухал мэдээлэл

Always follow basic safety precautions when using this electric paint sprayer to reduce the risk of fire, electric shock, and personal injury.

• Бүх зааврыг уншина уу: Familiarize yourself with the sprayer's operation and safety guidelines before use.
• Тохиромжтой хувийн хамгаалах хэрэгсэл (PPE) өмсөх: Always wear safety glasses, a respirator mask, gloves, and protective clothing to prevent exposure to paint fumes and overspray.
• Зөв агааржуулалтыг хангах: Use the sprayer in a well-ventilated area to avoid inhaling harmful fumes.
• Ажлын талбайг цэвэр, гэрэлтүүлэгтэй байлгах: Эмх замбараагүй эсвэл харанхуй газар осол аваар гарахыг өдөөдөг.
• Шатамхай материалаас зайлсхийх: Do not spray near open flames, pilot lights, or other ignition sources. Ensure proper grounding.
• Цахилгааныг салгах: Always unplug the sprayer before cleaning, adjusting, or performing maintenance.
• Хүүхэд болон хажууд байгаа хүмүүсийг хол байлга: Do not allow children or untrained persons to operate the sprayer.

3. Багцын агуулга

Verify that all items are present in the package before beginning assembly or operation.

• 500W Power Paint Sprayer Unit
• 1200ML Paint Container
• 4 Spray Nozzles (1.5mm, 2.0mm, 2.5mm, 3.0mm)
• 6.56FT UL Certified Cord
• Зуурамтгай чанарыг хэмжих аяга
• Цэвэрлэх сойз
• Цэвэрлэх зүү
• 10PCS Paint Strainers

Figure 2: All components included with the NEU MASTER Paint Sprayer.

4. Тохируулах заавар

4.1 Угсралт

1. Attach the spray unit to the motor housing and rotate it until it locks securely.
2. Ensure the buckle on the bottom is locked to prevent accidental detachment.
3. Install the suction tube with the seal washer into the spray unit. Adjust its direction based on whether you will be spraying upwards (tube points backward) or downwards (tube points forward) to ensure continuous paint flow.
4. Screw the paint container onto the spray unit, ensuring it is tightened completely.
5. Install the desired nozzle and secure it with the air cap and nut.
6. Insert the check valve back into its position, pointing it upwards for optimal performance.
7. Connect the tube to the check valve tube seat.

4.2 Paint Preparation

1. Шингэрүүлэх: Most paints require dilution for optimal spraying. Use the included viscosity measuring cup to determine the correct dilution ratio. Pour paint into the cup and time how long it takes to drain. Refer to your paint manufacturer's guidelines or the sprayer manual for recommended viscosity (Max 100 DIN-s).
2. Шүүлтүүр: Always filter your diluted paint using the provided strainers to remove any impurities or clumps that could clog the nozzle and affect spray quality.
3. Pour the prepared paint into the 1200ML container.

Figure 3: Preparing paint by checking viscosity and filtering before pouring into the sprayer container.

4.3 Цорго сонгох

Select the appropriate nozzle size based on the viscosity of your paint and the desired spray pattern.

Figure 4: Guide for selecting the correct nozzle based on paint type and application.

5. Ашиглалтын заавар

5.1 Шүрших хэв маягийг тохируулах

The sprayer offers three adjustable spray patterns: vertical, horizontal, and circular. Rotate the air cap to select the desired pattern.

• Horizontal (90°): Ideal for spraying vertical surfaces.
• Vertical (180°): Ideal for spraying horizontal surfaces.
• Circular (45°): Suitable for small areas, corners, or intricate details.

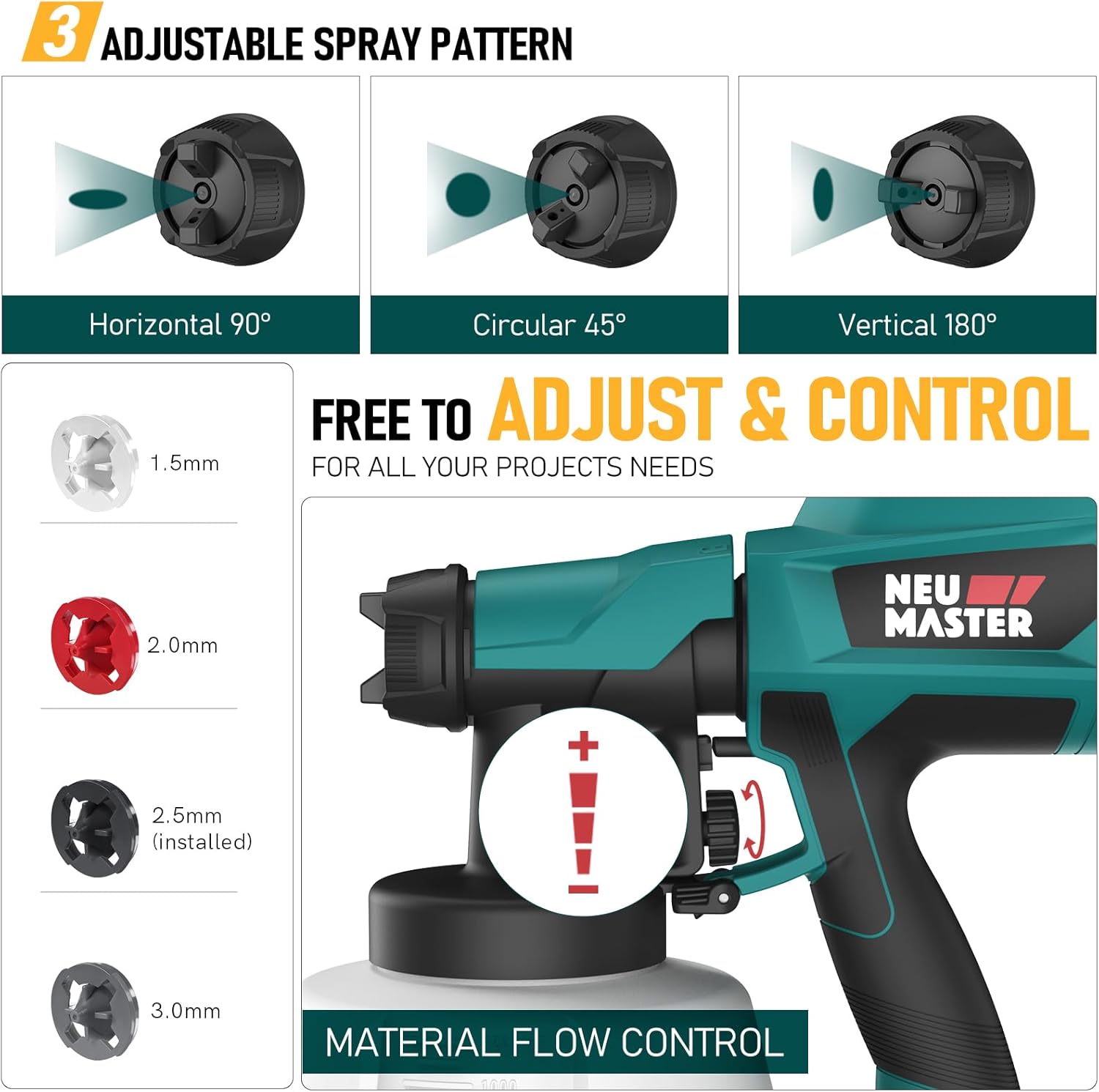

Figure 5: Adjusting the spray pattern and material flow control.

5.2 Material Flow Control

Use the material flow control knob to adjust the paint output volume. Turn the knob clockwise for more paint and counter-clockwise for less. Test the spray on a scrap piece of material to find the optimal setting for your project.

5.3 Шүрших арга

• Hold the sprayer approximately 6-12 inches (15-30 cm) from the surface.
• Apply paint in smooth, even strokes, overlapping each pass by about 50%.
• Maintain a consistent speed and distance from the surface to ensure an even finish.
• Avoid tilting the sprayer excessively, especially when the paint level is low, to prevent air from entering the suction tube.

Figure 6: The sprayer's design allows for operation at various angles.

6. Засвар үйлчилгээ, цэвэрлэгээ

Proper cleaning after each use is crucial to ensure the longevity and optimal performance of your paint sprayer.

1. Савыг хоослох: Pour any remaining paint back into its original can.
2. Rinse the container: Fill the container with an appropriate cleaning solution (water for latex/water-based paints, mineral spirits for oil-based paints) and spray it through the unit until clear.
3. Disassemble and clean parts: Unscrew the container, remove the air cap, nozzle, suction tube, and seal washer.
4. сайтар цэвэрлэх: Use the provided cleaning brush and needle to clean the flow channel, paint channel, suction tube, and nozzle. Ensure all paint residue is removed from all components.
5. Dry and reassemble: Allow all parts to dry completely before reassembling the sprayer.

Figure 7: Steps for quick and easy cleanup of the sprayer components.

7. Алдаа засах

Нийтлэг асуудлууд болон тэдгээрийн шийдлүүдийг энэ хэсгээс харна уу.

8. Бүтээгдэхүүний техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

For warranty information, technical support, or to purchase replacement parts, please refer to the official NEU MASTER webсайт эсвэл харилцагчийн үйлчилгээтэй шууд холбогдоно уу. Худалдан авалтын баримтаа худалдан авалтын баталгаа болгон хадгалаарай.
