ATTACK SHARK X8SE Wireless Gaming Mouse Instruction Manual

1. Бүтээгдэхүүн дууссанview

The ATTACK SHARK X8SE is a high-performance wireless gaming mouse designed for precision and versatility. It features tri-mode connectivity, an advanced optical sensor, and a lightweight ergonomic design for extended use.

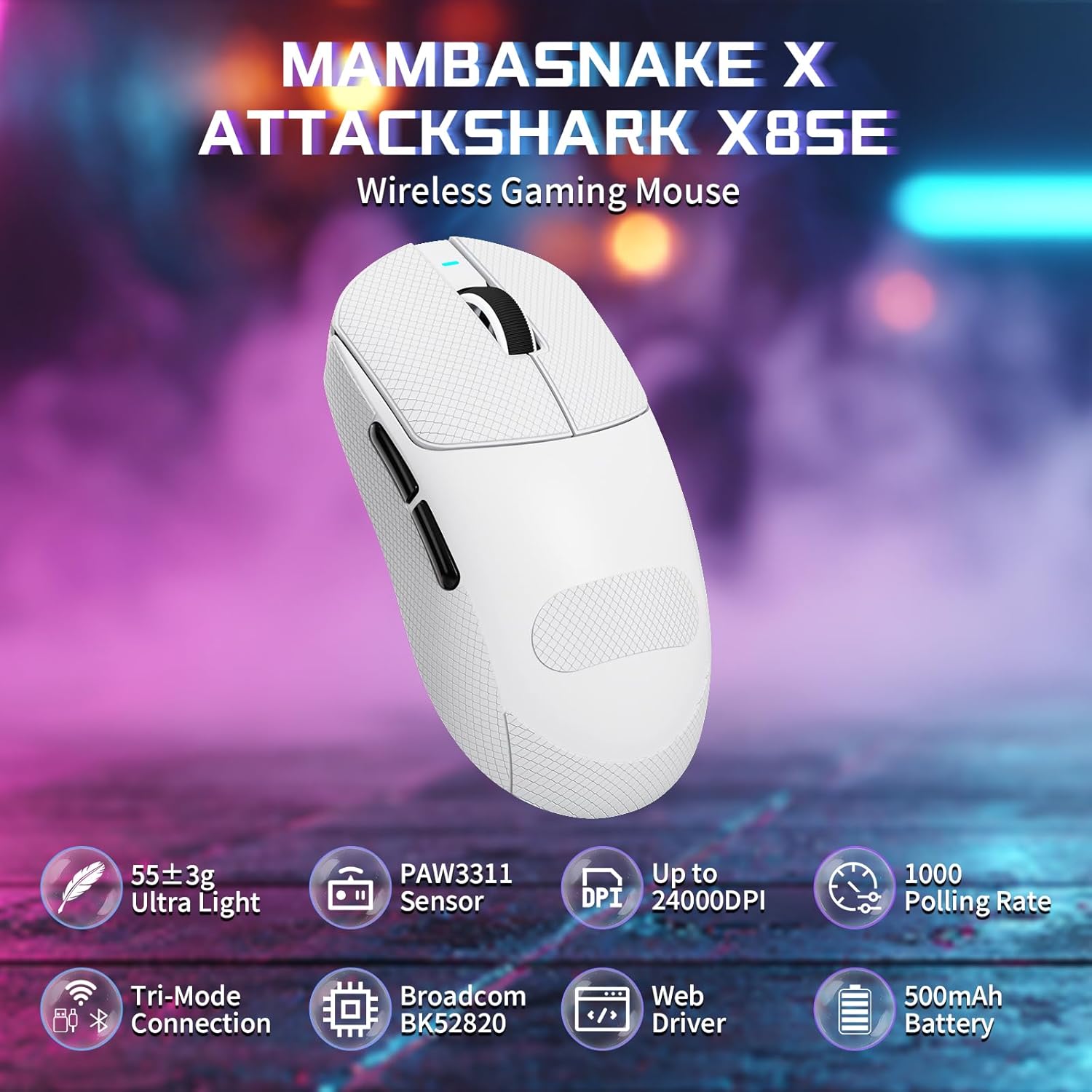

Figure 1: ATTACK SHARK X8SE Wireless Gaming Mouse highlighting ultra-light design, PAW3311 sensor, adjustable DPI, 1000Hz polling rate, tri-mode connection, Broadcom BK52820 chip, web driver, and 500mAh battery.

2. Багцын агуулга

• ATTACK SHARK X8SE Wireless Gaming Mouse
• USB-C цэнэглэх/өгөгдлийн кабель
• 2.4G USB хүлээн авагч
• Griptape (pre-applied or included separately)
• Зааварчилгааны гарын авлага

3. Тохиргоо

3.1 Анхны цэнэглэлт

Before first use, connect the mouse to a USB-A port on your computer using the provided USB-C cable to ensure it is fully charged. The mouse can be used in wired mode while charging.

3.2 Холболтын горимууд

The X8SE mouse supports three connection modes: 2.4GHz Wireless, Bluetooth, and USB-C Wired. A switch on the bottom of the mouse allows you to select the desired mode.

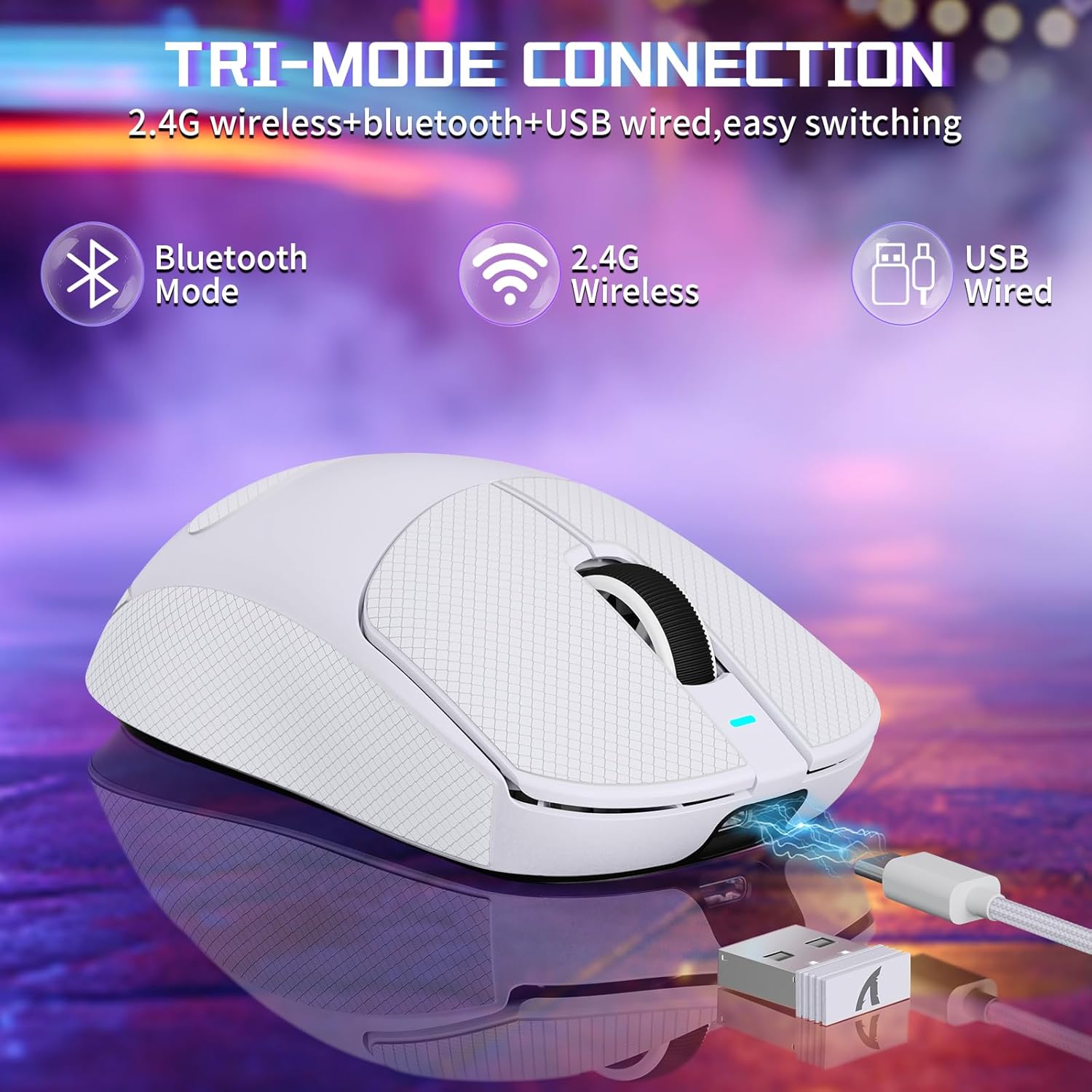

Figure 2: Tri-mode connection options including Bluetooth, 2.4G Wireless, and USB Wired.

3.2.1 2.4GHz утасгүй горим

1. Locate the 2.4G USB receiver stored in the compartment on the bottom of the mouse.
2. USB хүлээн авагчийг компьютер дээрх боломжтой USB-A порт руу залгаарай.
3. Switch the mode selector on the bottom of the mouse to the '2.4G' position.
4. Хулгана таны компьютерт автоматаар холбогдох ёстой.

3.2.2 Bluetooth горим

1. Switch the mode selector on the bottom of the mouse to the 'BT' position.
2. Компьютер эсвэл төхөөрөмж дээрээ Bluetooth тохиргоо руу очоод Bluetooth-г идэвхжүүлнэ үү.
3. хайх new devices and select 'ATTACK SHARK X8SE' to pair.

3.2.3 USB-C утастай горим

1. Connect one end of the provided USB-C cable to the mouse and the other end to a USB-A port on your computer.
2. Хулгана автоматаар утастай горимд шилжиж, цэнэглэж эхэлнэ.

3.3 Драйвер суурилуулах

The ATTACK SHARK X8SE utilizes an intelligent cloud-based driver for customization. This driver typically auto-detects your system. For advanced settings and customization, visit the official ATTACK SHARK website to download the latest software if not automatically prompted.

4. Ашиглалтын заавар

4.1 Товчлуурын функцууд

The X8SE mouse features 5 programmable buttons and a DPI switch.

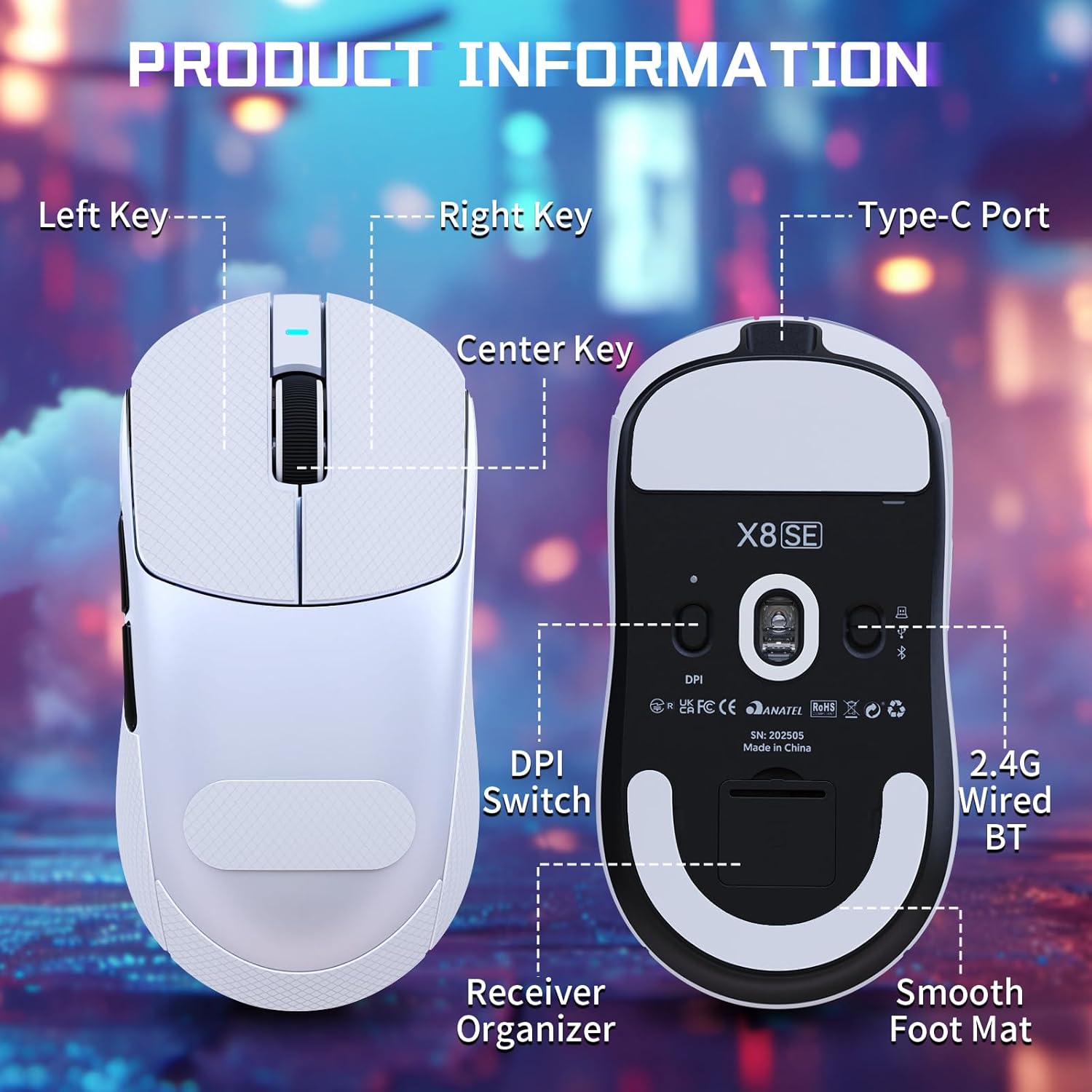

Figure 3: Product information diagram showing Left Key, Right Key, Center Key (scroll wheel), Type-C Port, Front Side Key, Back Side Key, DPI Switch, Receiver Organizer, and Smooth Foot Mat.

• Зүүн түлхүүр: Үндсэн товшилтын функц.
• Баруун түлхүүр: Хоёрдогч товшилтын функц.
• Center Key (Scroll Wheel): Дээш/доошоо гүйлгэж, дунд товш.
• Урд талын түлхүүр: Default function (programmable).
• Back Side Key: Default function (programmable).
• DPI Switch (bottom): DPI тохиргоогоор эргэлддэг.

4.2 DPI тохируулга

The mouse is equipped with a PixArt PAW3311 optical sensor, offering up to 25,000 DPI. You can adjust the DPI sensitivity using the dedicated DPI switch on the bottom of the mouse. There are 6 adjustable DPI levels:

• 800 DPI
• 1600 DPI
• 2400 DPI
• 3200 DPI
• 8000 DPI
• 25000 DPI

Figure 4: Visual representation of adjustable DPI levels (800-25000) and polling rates (125Hz-1000Hz) with corresponding indicator lights.

4.3 Санал хураалтын түвшингийн тохируулга

The 2.4G wireless mode supports a 1000Hz polling rate for esports-level responsiveness. Polling rates can be adjusted via the cloud driver software to 125Hz, 250Hz, 500Hz, or 1000Hz.

4.4 Тохируулах

Utilize the intelligent cloud driver software to fully customize your mouse settings. This includes:

• Remapping button functions.
• Adjusting DPI levels and sensitivity.
• Setting polling rates.
• Recording and assigning macros.

Figure 5: The cloud driver interface for customizing mouse settings, including button assignments, DPI, and polling rate.

4.5 Батерейны ашиглалтын хугацаа

The built-in 500mAh battery provides up to 65 hours of continuous use. Battery status can typically be monitored via the driver software or system indicators.

Figure 6: The 500mAh large capacity battery ensures extended usage.

4.6 Эргономик дизайн

Weighing approximately 55g, the X8SE features an optimized symmetrical shape suitable for medium to large hands, promoting comfort and control during long sessions.

Figure 7: Dimensions of the X8SE mouse (125mm length, 63mm width, 39.7mm height) and its ergonomic design for larger hands and symmetrical waist-tapered shape.

5. Засвар үйлчилгээ

5.1 Цэвэрлэгээ

Хулгана цэвэрлэхийн тулд зөөлөн, хуурай даавуу хэрэглээрэй. Зөрүүд шороонд бага зэрэг damp зөөлөн савантай даавууг хэрэглэж, хулгана руу шингэн орохгүй байхыг баталгаажуулна. Хүчтэй химийн бодис, зүлгүүрийн материалаас зайлсхий.

5.2 Батерейны арчилгаа

To prolong battery life, avoid fully discharging the mouse frequently. Charge the mouse when the battery indicator is low. Store the mouse in a cool, dry place when not in use for extended periods.

5.3 Griptape Application

If your mouse came with separate griptape, ensure the mouse surface is clean and dry before applying. Carefully peel the backing from the griptape and align it with the designated areas on the mouse for improved grip. Press firmly to secure.

6. Алдаа засах

6.1 Хулгана хариу өгөхгүй байна

• Холболтыг шалгах: Ensure the mouse is in the correct mode (2.4G, BT, or Wired) and properly connected. For 2.4G, ensure the receiver is securely plugged in. For Bluetooth, verify pairing in your device's settings.
• Батерейны түвшин: Charge the mouse using the USB-C cable.
• Дахин эхлүүлэх: Turn the mouse off and then on again using the switch on the bottom.
• Жолоочийн програм хангамж: If using the cloud driver, ensure it is running correctly. Sometimes restarting the driver software or running it as an administrator can resolve issues.
• USB порт: Компьютер дээрээ өөр USB порт ашиглаж үзнэ үү.

6.2 DPI or Polling Rate Not Changing

• DPI шилжүүлэгч: Ensure you are pressing the DPI switch on the bottom of the mouse firmly to cycle through settings.
• Програм хангамжийн тохиргоо: Verify DPI and polling rate settings within the cloud driver software. Apply any changes made in the software.

6.3 Bluetooth холболтын асуудлууд

• Хулганы горим: Confirm the mouse is set to 'BT' mode.
• Төхөөрөмжийн Bluetooth: Ensure Bluetooth is enabled and discoverable on your computer or device.
• Төхөөрөмжийг март: If previously paired, try 'forgetting' the mouse in your device's Bluetooth settings and re-pairing.

7. Техникийн үзүүлэлтүүд

8. Бүтээгдэхүүний видео

9. Баталгаат хугацаа ба дэмжлэг

For warranty information and technical support, please refer to the documentation included with your product or visit the official ATTACK SHARK webсайт. Баталгаат нэхэмжлэл гаргахын тулд худалдан авалтаа нотлох баримтаа хадгалаарай.
