Anweller 12x32 High Powered Binoculars with Camera

1. Танилцуулга

Thank you for choosing the Anweller 12x32 High Powered Binoculars with Camera. This device combines powerful optical magnification with a high-definition digital camera, allowing you to observe distant subjects and capture stunning 48MP photos and 2.5K HD videos simultaneously. Designed for ease of use and durability, these binoculars are ideal for various outdoor activities such as bird watching, sporting events, hunting, travel, and hiking.

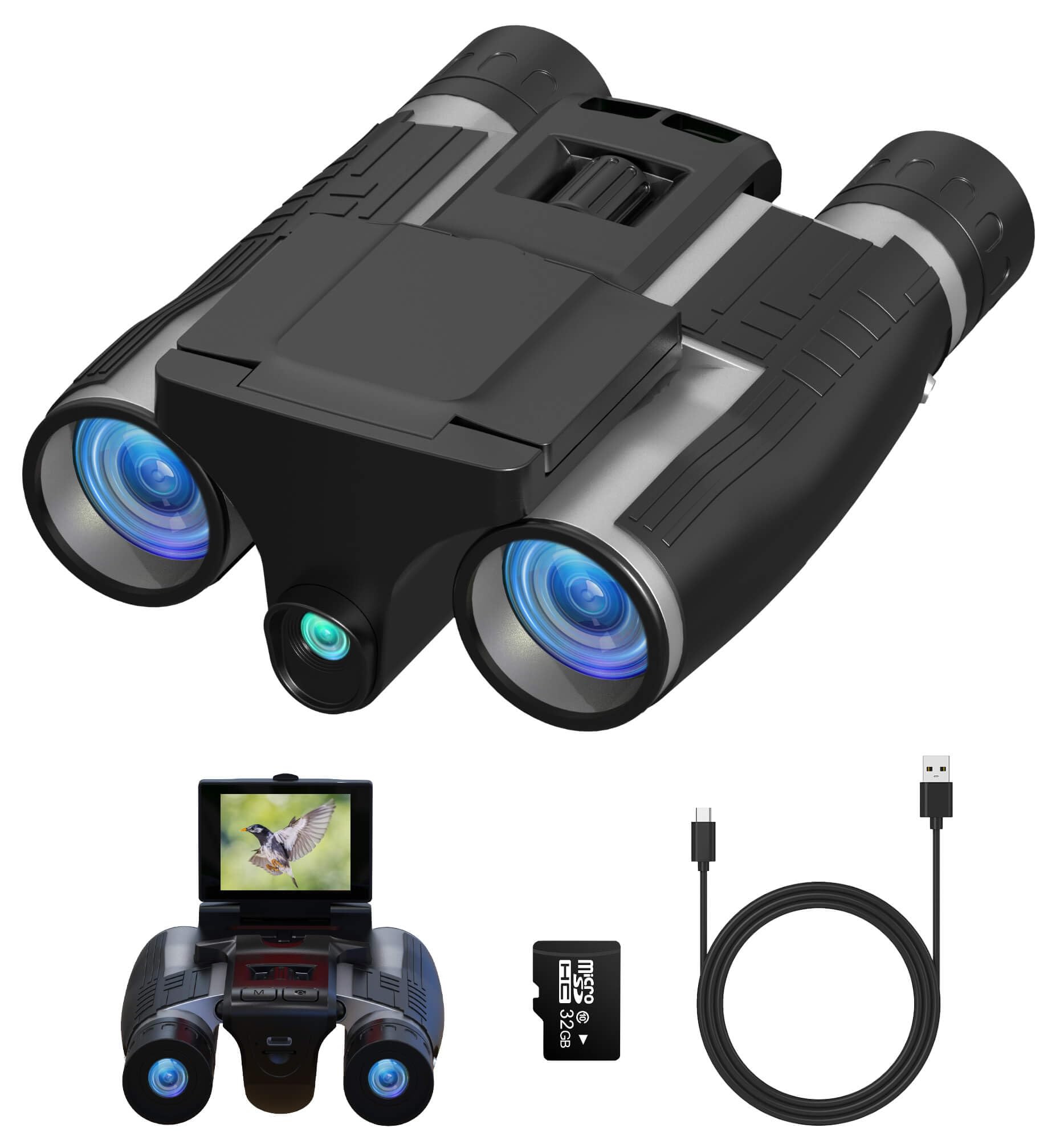

Image: Anweller 12x32 High Powered Binoculars with Camera, showcasing its compact design and integrated camera.

2. Аюулгүй байдлын мэдээлэл

• Do not look directly at the sun through the binoculars, as this can cause permanent eye damage.
• Төхөөрөмжийг хэт өндөр температур, чийгшилээс хол байлга.
• Avoid dropping or subjecting the binoculars to strong impacts.
• Жижиг хэсгүүдийг санамсаргүйгээр залгихаас сэргийлж, бага насны хүүхдээс хол байлга.
• Use only the provided charging cable and adapter to prevent damage to the device.

3. Багцын агуулга

Бүх зүйл багцад байгаа эсэхийг шалгаарай:

• 1 x Anweller Binoculars with Neck-Strap
• 1 х 32 ГБ санах ойн карт
• 1 x USB-C кабель

4. Бүтээгдэхүүн дууссанview

Familiarize yourself with the various components of your Anweller binoculars:

Image: Labeled diagram of the Anweller Binoculars with Camera, highlighting key components such as the IPS screen, optical lenses, focus ring, control buttons, and ports.

1. IPS Screen 2.4 in: Flip-up display for viewing болон цэс навигаци.
2. Оптик линз: Main lenses for magnification.
3. Фокус бөгж: Adjusts the focus for clear viewing.
4. Горимын товчлуур: Зураг, видео болон тоглуулах горимуудын хооронд шилждэг.
5. Микро USB порт: For data transfer and charging (USB-C).
6. LED үзүүлэлт: Төхөөрөмжийн статусыг харуулна.
7. Micro SD үүр: Санах ойн карт оруулах зориулалттай.
8. Асаах/унтраах: Button to turn the device on or off.
9. Зүүн товчлуур: Навигацийн товчлуур.
10. Дахин тохируулах Төхөөрөмжийг дахин тохируулах товчлуур.
11. Баруун товчлуур: Навигацийн товчлуур.
12. Цэсийн товчлуур: Төхөөрөмжийн тохиргоонд ханддаг.
13. Camera/OK Button: Captures photos or confirms selections.
14. Diopter Ring: Adjusts focus for individual eye differences.
15. Нүдний шил: Where you look through the binoculars.

5. Эхлэл

5.1. Батерейг цэнэглэж байна

The binoculars come with a built-in 1000mAh lithium battery. Before first use, fully charge the device using the provided USB-C cable.

• Connect the USB-C cable to the Micro USB Port on the binoculars.
• Connect the other end of the cable to a USB power adapter (not included) or a computer.
• The LED indicator will show charging status. A full charge supports up to 4 hours of continuous video recording.

Image: Illustration showing the 1000mAh rechargeable battery and USB-C fast charging capability.

5.2. SD карт оруулах

A 32GB memory card is included. Insert it into the Micro SD Slot before recording.

• Locate the Micro SD Slot on the device.
• Gently insert the memory card until it clicks into place.
• Авахын тулд картыг гартал нь бага зэрэг түлхэх хэрэгтэй.

5.3. Асаах/унтраах

Press and hold the Power On/Off button to turn the binoculars on or off. The IPS screen will light up.

6. Ашиглалтын заавар

6.1. Фокусыг тохируулах

Тодорхой болгохын тулд viewing, adjust the focus:

• Central Focus Wheel: Use the large focus ring located between the eyepieces to adjust the focus for both eyes simultaneously.
• Diopter Ring: If one eye requires a different focus, adjust the diopter ring on the right eyepiece until the image is sharp for that eye.

6.2. Using the Display

The 2.4-inch IPS screen flips up for real-time viewing болон цэс навигаци.

Image: The Anweller Binoculars showing the 2.4-inch LCD real-time display in use, with an 8x digital zoom feature.

6.3. Томруулах функц

The binoculars feature 12x optical magnification and up to 8x digital zoom.

• Use the zoom buttons (usually labeled with '+' and '-') near the display to digitally zoom in or out.

6.4. Taking Photos (48MP)

To capture a high-resolution photo:

• Ensure the device is in photo mode (check the icon on the display).
• Frame your subject using the eyepieces or the flip-up screen.
• Press the Camera/OK button to take a picture.

6.5. Recording Videos (2.5K HD)

To record high-definition video:

• Switch to video mode using the Mode button.
• Press the Camera/OK button once to start recording.
• Press the Camera/OK button again to stop recording.

Image: A person using the binoculars to observe and capture a flock of birds, with an overlay showing 48MP image and 2.5K video capabilities.

6.6. Viewing Media

Та дахин болноview your captured photos and videos directly on the device.

• Switch to playback mode using the Mode button.
• Use the navigation buttons (Left/Right) to browse through your files.
• Press the Camera/OK button to view зураг эсвэл видео тоглуулах.

6.7. Медиа дамжуулах

To transfer your fileкомпьютерт:

• Connect the binoculars to your computer using the USB-C cable.
• The device should appear as a removable disk drive.
• Чирэх, буулгах files from the binoculars to your computer.

Image: A person connecting the Anweller Binoculars to a laptop via USB-C to view and transfer captured memories.

6.8. Бүтээгдэхүүний албан ёсны видео

Video: An official product video demonstrating the features and functionality of the Anweller Binoculars with Camera, including its design, controls, and display.

7. Засвар үйлчилгээ

• Цэвэрлэх линз: Use the provided lens cleaning cloth or a soft, lint-free cloth to gently wipe the lenses. Avoid using abrasive materials or harsh chemicals.
• Цэвэрлэгээний байгууллага: Дурангийн их биеийг зөөлөн арчих, гamp даавуу.
• Хадгалах: Store the binoculars in a cool, dry place when not in use. Keep them in their protective case to prevent dust and scratches.
• Усны эсэргүүцэл: The binoculars are life waterproof, meaning they can withstand light splashes or rain. Do not submerge them in water.

8. Алдаа засах

9. Техникийн үзүүлэлтүүд

10. Баталгаат хугацаа ба дэмжлэг

Anweller provides a 12-month warranty for this product, covering free replacement or refund within this period. Additionally, free lifetime technical support is available. For any queries or assistance, please contact Anweller customer support at hongjdzwj@outlook.com.
