MOVE SPEED 0.3'' Ultra Slim MagSafe Portable Charger 5000mAh User Manual

1. Танилцуулга

Thank you for choosing the MOVE SPEED 0.3'' Ultra Slim MagSafe Portable Charger. This device is designed to provide convenient and efficient power on the go for your compatible devices. Please read this manual carefully before use to ensure proper operation and to maximize the lifespan of your product.

2. Бүтээгдэхүүний онцлог

• Ultra-Slim and Lightweight Design: At just 0.3 inches thick and weighing 114g, this portable charger is designed for maximum portability, easily fitting into pockets or clutches without adding bulk. Its skin-friendly aluminum construction ensures a comfortable and premium feel.
• Хүчтэй соронзон бэхэлгээ: Equipped with an iPhone-compatible magnetic array and aerospace-grade N52 magnets, it offers a 4x stronger magnetic force for secure attachment. The curved-edge design ensures accurate and firm placement, keeping it in place even during movement.
• Ухаалаг температурын хяналт: Features a gray aluminum shell with graphene cooling and an NTC temperature control system to prevent overheating. The Grade 5A safety battery core and flame-retardant materials enhance safety. Note: Incompatible with cases not designed for MagSafe, which may lead to overheating.
• Quick and Efficient Charging: The 5000mAh battery can charge an iPhone from 15% to 55% in approximately 30 minutes and fully charges itself in 60 minutes. Built with high-quality cells, it withstands over 800 charging cycles while maintaining over 80% health. Certified for air travel.
• Давхар цэнэглэх чадвар: Supports both 7.5W MagSafe wireless charging and 18W Power Delivery wired charging via its USB-C port. Compatible with phones, earbuds, and tablets. The 5000mAh capacity provides up to 18 hours of talk time or 6 hours of GPS usage. Smart power management protects your device's battery health.

3. Багцын агуулга

• ХӨДӨЛГӨХ ХУРД 0.3 инчийн хэт нимгэн MagSafe зөөврийн цэнэглэгч (5000mAh)
• USB-C-ээс USB-C цэнэглэх кабель
• Magnetic Ring (for non-MagSafe compatible devices/cases)
• Хэрэглэгчийн гарын авлага

4. Тохиргоо ба суурилуулалт

4.1 Charging the Portable Charger

Before initial use, fully charge your MOVE SPEED portable charger. Connect the provided USB-C to USB-C cable to the charger's USB-C port and plug the other end into a compatible USB power adapter (not included). The LED indicators on the side will show the charging status and battery level.

4.2 Attaching to Your Device (MagSafe Compatible)

For MagSafe-compatible iPhones (iPhone 12 series and newer), simply align the portable charger with the back of your iPhone. The strong magnets will automatically snap it into place, initiating wireless charging.

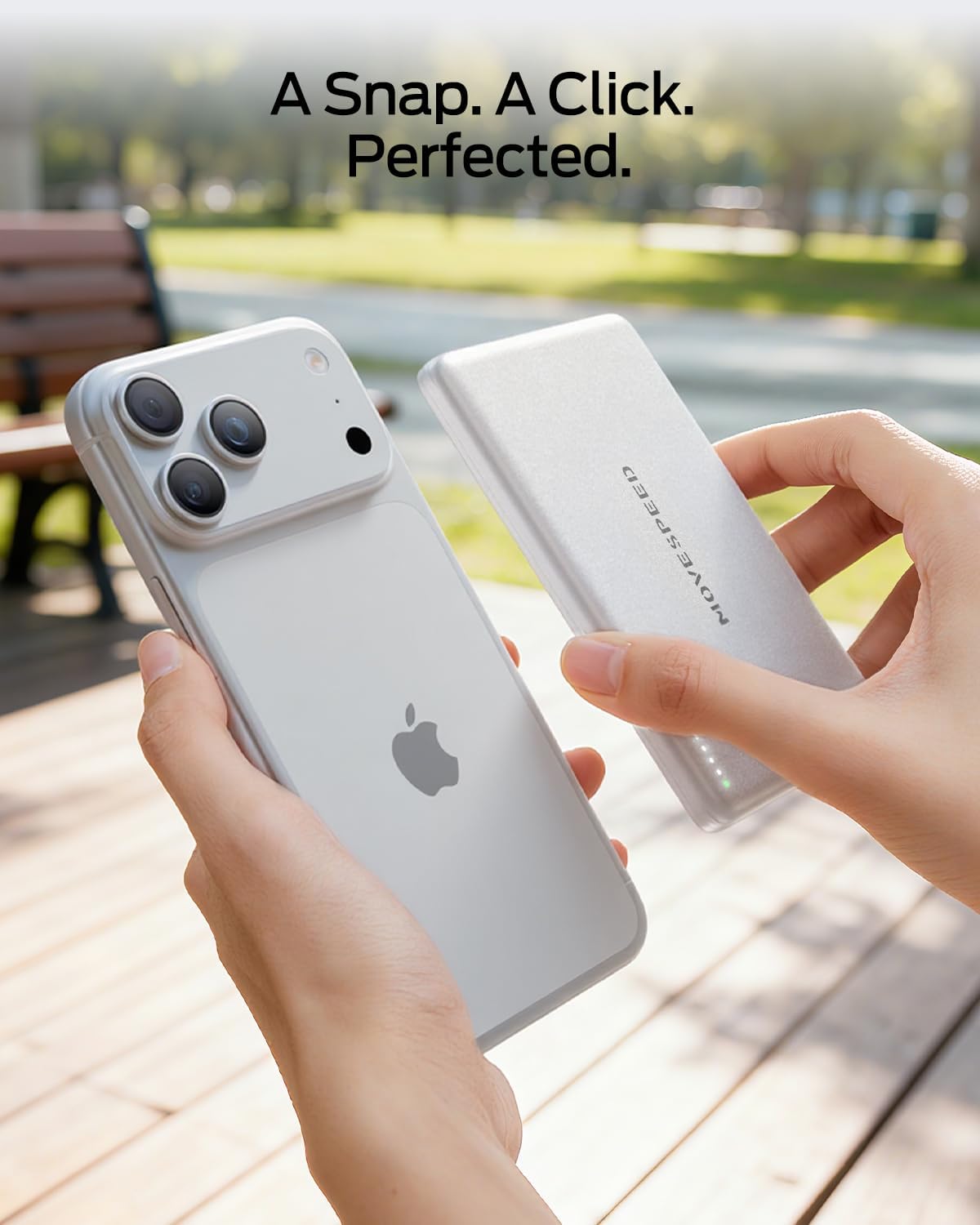

Image: The portable charger securely attaches to the back of a MagSafe-compatible iPhone.

4.3 Using the Magnetic Ring (for Non-MagSafe Devices/Cases)

If your phone or phone case is not MagSafe compatible, you can use the included magnetic ring. Peel off the adhesive backing from the magnetic ring and carefully center it on the back of your phone or case. This will allow the portable charger to magnetically attach and provide wireless charging.

5. Ашиглалтын заавар

5.1 Утасгүй цэнэглэх

Once the portable charger is magnetically attached to your compatible device, wireless charging will begin automatically. The LED indicators on the side of the power bank will illuminate to show it is active. Ensure no foreign objects are between the charger and your device to prevent interference or overheating.

Image: An iPhone receiving 7.5W wireless charge from the portable charger.

5.2 Утастай цэнэглэх

To use wired charging, connect your device to the portable charger's USB-C port using a compatible cable. This supports 18W Power Delivery for faster charging. This method is suitable for phones, earbuds, and tablets.

Image: Illustration of the dual-mode fast charging capability, offering both 18W wired and 7.5W wireless output.

5.3 Батерейны түвшинг шалгах

The portable charger features LED indicators on its side to display the remaining battery capacity. Press the small button on the side to activate the indicators.

5.4 Using the Integrated Kickstand

Some models of the MOVE SPEED portable charger include a built-in kickstand. This allows you to prop up your phone while it is attached to the charger, providing a convenient viewing angle for media or video calls during charging.

6. Засвар үйлчилгээ

• Цэвэрлэгээ: Use a soft, dry cloth to clean the surface of the portable charger. Avoid using harsh chemicals or abrasive materials.
• Хадгалах: Цэнэглэгчийг нарны шууд тусгал, хэт температураас хол, сэрүүн, хуурай газар хадгална.
• Батерейны арчилгаа: To maintain optimal battery health, fully charge the power bank at least once every three months if not in regular use.

7. Алдаа засах

• Төхөөрөмж цэнэглэхгүй байна:
  • Ensure the portable charger is adequately charged.
  • Verify that your device is correctly aligned with the magnetic charging area.
  • Check if your phone case is MagSafe compatible. Non-MagSafe cases may interfere with wireless charging or cause overheating.
  • For wired charging, ensure the USB-C cable is securely connected to both the charger and your device.
• Хэт халалт:
  • The charger features smart temperature control to prevent excessive heat. If it feels unusually hot, disconnect it from your device and allow it to cool down.
  • Нарны шууд тусгалд эсвэл агааржуулалт муутай хаалттай газар цэнэглэхээс зайлсхий.
  • As mentioned, non-MagSafe cases can cause overheating. Consider removing the case or using a MagSafe-compatible case.
• Удаан цэнэглэх:
  • Ensure you are using a compatible power adapter for charging the power bank itself.
  • For optimal wireless charging speed, ensure perfect alignment between the charger and your device.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

MOVE SPEED provides a 24-month warranty for this product, ensuring worry-free use. We also offer lifetime professional support and free return or replacement services to ensure your complete satisfaction. For technical assistance or product advice, please contact our customer support team.

Trusted by over 100 million users in 80+ countries, MOVE SPEED utilizes original-grade chips and certified parts. Every product is designed to be safe, reliable, and built to last.
