Y&H MPPT 80 Amp Нарны цэнэгийн хянагч хэрэглэгчийн гарын авлага

1. Танилцуулга

This manual provides essential information for the safe and efficient operation of your Y&H MPPT 80 Amp Solar Charge Controller. This advanced controller utilizes Maximum Power Point Tracking (MPPT) technology to optimize solar energy harvesting, offering up to 99% tracking efficiency. It is designed for 12V, 24V, 36V, and 48V systems and is compatible with various battery types, including AGM, Gel, and Lithium batteries. Please read this manual thoroughly before installation and use.

2. Аюулгүй байдлын мэдээлэл

• Ensure all wiring is correctly connected with proper polarity to prevent damage to the controller and connected devices.
• Хянагчийг суурилуулах эсвэл тохируулахаасаа өмнө нарны хавтан болон батерейны тэжээлийг үргэлж салгаж байгаарай.
• Install the controller in a well-ventilated area, away from flammable gases and liquids.
• Хянагчийг өөрөө задлах эсвэл засах гэж бүү оролдоорой. Үйлчилгээ авахын тулд мэргэшсэн ажилтантай холбогдоно уу.
• Суурилуулалтын явцад нүдний хамгаалалт зэрэг хувийн хамгаалах хэрэгслийг өмсөөрэй.
• The controller can generate high voltages. Exercise extreme caution.

3. Бүтээгдэхүүн дууссанview

The Y&H MPPT 80 Amp Solar Charge Controller is designed for robust and efficient solar power management. Key features include:

• High-Efficiency MPPT Technology: Up to 99% tracking efficiency, significantly more efficient than traditional PWM controllers.
• Ухаалаг системийн нийцтэй байдал: Automatic recognition for 12V, 24V, 36V, and 48V battery systems.
• Олон талын батерейны дэмжлэг: Compatible with AGM, Gel, and Lithium (LiFePO4/Li NiCoMn)O2 batteries.
• Иж бүрэн хамгаалалт: Built-in safeguards against overcharge, over-discharge, overload, short circuit, reverse polarity, and over-temperature (IP30 rated for -20°C to +55°C environments).
• Intuitive LCD Display: Provides real-time system status and allows for easy adjustment of settings.
• Smart Load Management: Онцлогууд 20 Amp discharge capacity with four load control modes: Manual, Light Control, Light Control + Timer, and Reverse Control.

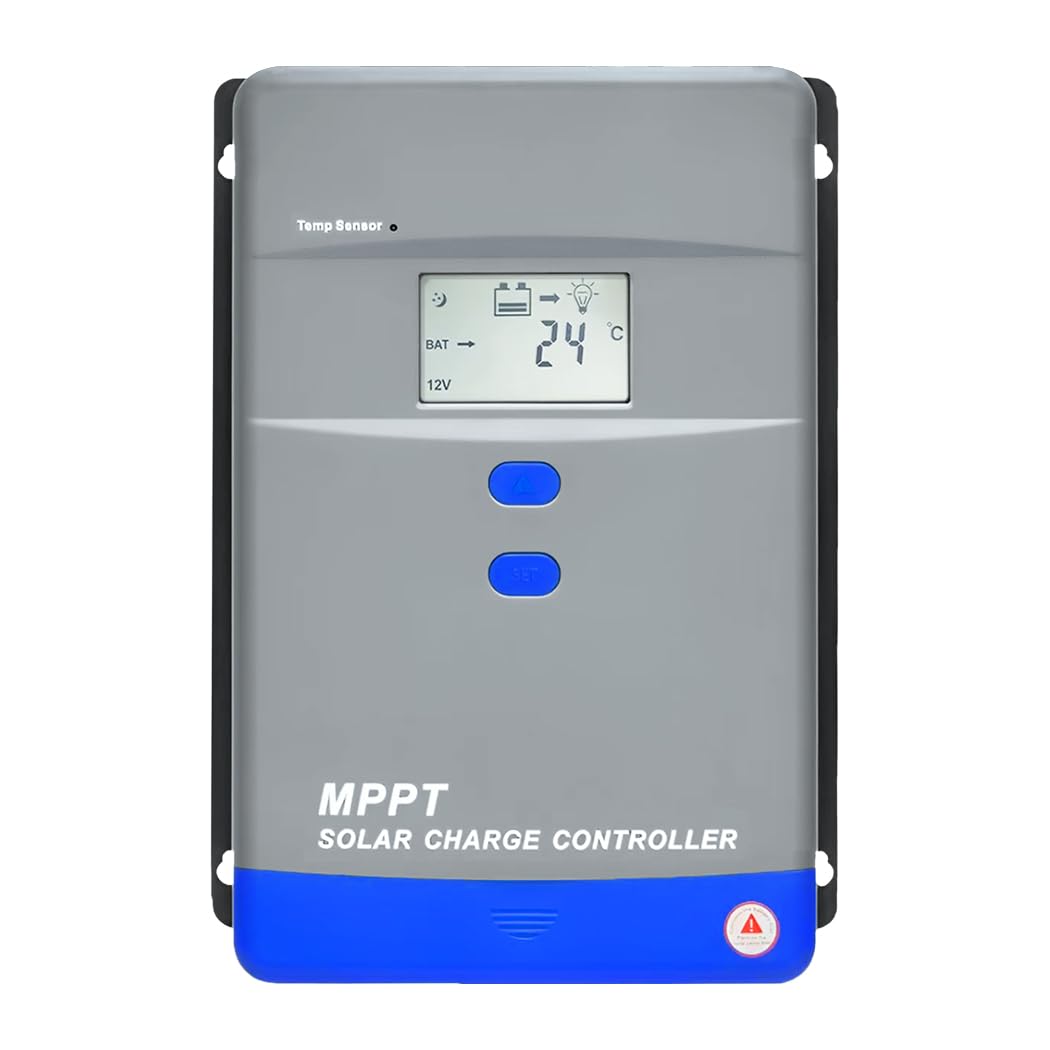

Бүрэлдэхүүн хэсгүүдийг тодорхойлох

4. Тохиргоо ба суурилуулалт

Follow these steps for proper installation of the solar charge controller:

1. Суурилуулалт: Choose a cool, dry, and well-ventilated location. Mount the controller vertically on a wall or suitable surface, ensuring adequate clearance around the unit for airflow, especially around the heat sink.
2. Зайны холболт: Connect the battery to the controller's battery terminals first. Ensure correct polarity (+ to + and - to -). The controller will automatically detect the battery voltage.
3. Нарны хавтангийн холболт: Connect the solar panels to the controller's PV input terminals. Again, observe correct polarity. The controller will begin charging the battery.
4. Холболтыг ачаалах: Connect your DC loads to the controller's load terminals. Ensure the total current draw of your loads does not exceed the controller's rated load current (20A).
5. Холболтуудыг баталгаажуулах: Double-check all connections for tightness and correct polarity before powering on the system.

Чухал: Always connect the battery first and disconnect the solar panel first when disassembling the system.

5. Ашиглалтын заавар

LCD Display and Navigation

The LCD screen displays real-time system parameters such as battery voltage, charging current, discharge current, battery temperature, and load status. Use the two blue buttons below the screen to navigate through the display menus and adjust settings.

• Дээш товчлуур: Used to scroll through display screens or increase values during setting adjustments.
• Доош товч: Used to scroll through display screens or decrease values during setting adjustments.
• Long Press (Up/Down): Enters or exits setting modes.

Батерейны төрлийг сонгох

Удирдлага нь янз бүрийн төрлийн батерейг дэмждэг. Хамгийн оновчтой цэнэглэлт болон батерейны ашиглалтын хугацааг уртасгахын тулд зөв төрлийн батерейг сонгох нь чухал юм.

1. Long press the 'Up' button to enter the battery type setting menu.
2. Use the 'Up' or 'Down' buttons to select your battery type (e.g., GEL, AGM, FLOODED, LITHIUM).
3. Long press the 'Up' button again to confirm and exit the setting.

Load Control Modes

The controller offers four load control modes:

• Гар горим: Load is turned on/off manually via the controller buttons.
• Гэрлийн хяналтын горим: Load turns on automatically at dusk and off at dawn.
• Light Control + Timer Mode: Load turns on at dusk and stays on for a set number of hours.
• Reverse Control Mode: Load turns off at dusk and on at dawn (e.g., for security lights).

Refer to the on-screen menu for detailed adjustment of timer settings in Light Control + Timer mode.

6. Засвар үйлчилгээ

Тогтмол засвар үйлчилгээ нь таны нарны цэнэгийн зохицуулагчийн оновчтой ажиллагаа, урт хугацааны ашиглалтыг баталгаажуулдаг.

• Холболтуудыг шалгах: Periodically inspect all wiring connections for tightness and corrosion. Tighten any loose connections.
• Хянагчийг цэвэрлэх: Keep the controller clean and free from dust and debris. Use a dry cloth to wipe the exterior. Ensure the cooling fan and heat sink fins are not obstructed.
• Гүйцэтгэлийг хянах: Regularly check the LCD display for normal operation and system parameters. Note any unusual readings.
• Батерейны үзлэг: Inspect batteries for any signs of damage, swelling, or leakage. Ensure battery terminals are clean.

7. Алдаа засах

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

Y&H provides professional and prompt technical assistance. If you have any questions or require support, please contact our team. We aim to respond with a solution within 24 hours.

For warranty information, please refer to the documentation included with your purchase or contact the seller directly.
