1. Бүтээгдэхүүн дууссанview
The Radiolink T12D is a 12-channel 2.4GHz RC transmitter designed for a wide range of remote-controlled models. It comes paired with the R12F receiver, offering reliable control and advanced features for enthusiasts and professionals. This system provides stable signal transmission, extensive model storage, and compatibility with various external modules and simulators.
Гол онцлогууд
- 12 Fully Proportional Channels: All 12 channels are programmable for advanced settings, including V-tail and Delta-Wing mixing. (Note: T12D firmware must be updated to version 1.7.1 for full functionality).
- 32 Model Storage Capacity: 32 хүртэлх өөр загварын тохиргоог хадгалах.
- Extended Range and Stability: Features 2.4GHz FHSS spread spectrum technology with 67 channels, ensuring excellent anti-interference performance and a stable signal up to 4 km.
- Гадаад модулийн дэмжлэг: Compatible with popular long-range RC modules like ExpressLRS (e.g., BETAFPV ELRS Nano TX, Radiolink ATA ELSR 1W) and TBS Crossfire (e.g., TBS Crossfire Nano TX) via a pre-installed module bay.
- Open-Source Simulator Compatibility: Connect directly to your computer via a Type-C cable for use with simulators such as TRYP FPV, AeroFly, Uncrashed, Liftoff, FPV LOGIC, and Velocidrone (TBS Simulator). Compatible with MacOS and Windows.
- Multi-Language Navigation: The 2.8-inch color screen offers a user-friendly menu in multiple languages, including English, German, French, Russian, Chinese, Japanese, Spanish, Korean, Thai, and Polish.
- Өргөн хүлээн авагчийн нийцтэй байдал: Compatible with Radiolink R16F, R12F, R8EF, R8XM, R8FM, R8SM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, and R4F receivers. Note: Not compatible with non-Radiolink receivers/transmitters.
Image: Radiolink T12D Transmitter highlighting its 12 channels and other features.
Image: Wide Applicability of the T12D transmitter across different RC models.
2. Тохиргоо
2.1 Багцын агуулга
Before proceeding with setup, ensure all components are present in the package:
- 1 x T12D Transmitter
- 1 x R12F Receiver
- 1 x Type-C кабель
- 1 x Дэгээ ба пүрш
- 1 x Зааварчилгааны гарын авлага
- 1 x ELSR Module Mounting Base (pre-installed)
Image: Package List showing all included items.
2.2 Батерей суурилуулах
The T12D transmitter supports various battery types. Open the battery compartment on the back of the transmitter. Insert the chosen battery type, ensuring correct polarity. The transmitter supports LiPo batteries (2S-4S / 18650 LiPo Battery) or 8x AA batteries. A Type-C port is available for temporary 5V power, and a JST 2Pin connector is provided for battery connection.
Image: Supported Battery Types and Battery Compartment details.
2.3 Хүлээн авагчийг холбох
To establish communication between the T12D transmitter and the R12F receiver, a binding process is required. Refer to the detailed binding instructions in the included manual for your specific receiver model. Ensure the transmitter and receiver are powered on and within close proximity during the binding procedure.
2.4 Програм хангамжийн шинэчлэлт
For optimal performance and access to the latest features, it is recommended to keep the T12D firmware updated. Connect the transmitter to your computer using the provided Type-C cable. Visit the official Radiolink website for the latest firmware and update instructions. Firmware version 1.7.1 or higher is required for full 12-channel functionality and advanced mixing options.
Image: Firmware Update and RC Simulator Support.
3. Ашиглалтын заавар
3.1 Transmitter Interface and Controls
Familiarize yourself with the various controls and indicators on the T12D transmitter:

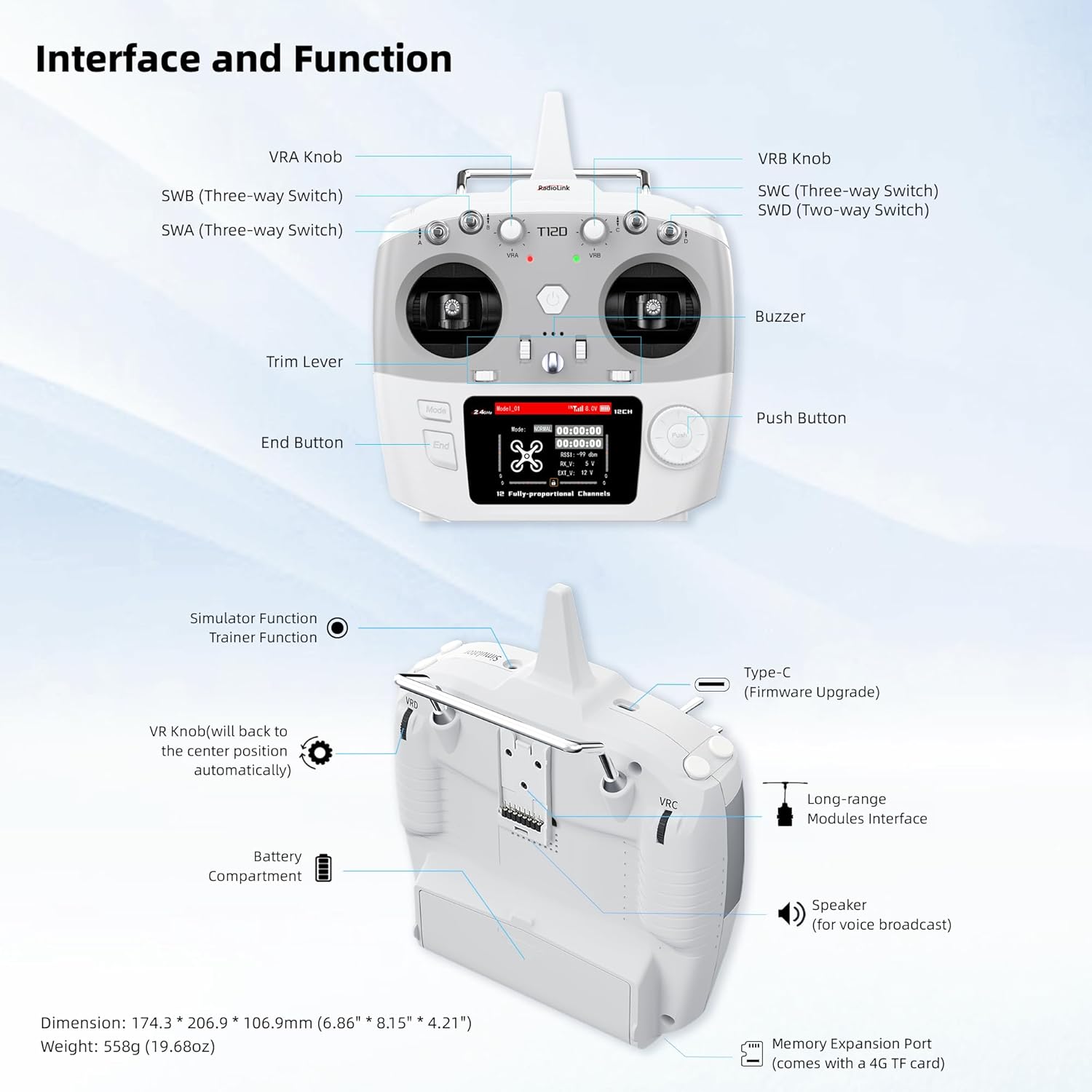

Image: Transmitter Interface and Function Diagram.
- VRA/VRB Knobs: Proportional rotary knobs.
- SWB/SWA (Three-way Switch): Configurable 3-position switches.
- SWC/SWD (Two-way Switch): Configurable 2-position switches.
- Trim Levers: For fine-tuning control surfaces.
- End Button: Цэсийг удирдах, сонгоход ашигладаг.
- Дарах товчлуур: Цэсийг удирдах, сонгоход ашигладаг.
- Буззер: Provides audible feedback.
- Төрөл-C порт: For firmware upgrades and simulator connection.
- Long-range Modules Interface: Bay for external modules.
- Илтгэгч: For voice broadcast.
- Memory Expansion Port: Supports 4G TF card.
3.2 Цэсний навигаци ба тохиргоо
The T12D features a 2.8-inch color display with an intuitive menu system. Use the navigation buttons and knobs to access and adjust settings for your models.
Image: Menu Multiple Languages display.
- Үндсэн цэс: Access General Settings, Advanced Settings, Transmitter Settings, and Receiver Settings.
- Хэлний сонголт: Navigate to System Settings to choose your preferred language.
- Загвар хадгалах: The transmitter can store up to 32 models. Select and configure model-specific settings as needed.
- Programmable Mixes: Configure various mixing functions such as V-tail, Delta-Wing, and other custom mixes. Ensure firmware is updated to version 1.7.1 for advanced mixing capabilities.
3.3 External Module Usage
The T12D supports external long-range modules. Insert the compatible module into the pre-installed module bay. Configure the module settings through the transmitter's menu as required by the specific module.
Image: Mainstream External Modules Support.
3.4 Simulator Function
Connect the T12D to your computer using the Type-C cable to use it as a controller for RC simulators. No additional dongle is required. This feature is compatible with popular simulators like TRYP FPV, AeroFly, Uncrashed, Liftoff, FPV LOGIC, and Velocidrone (TBS Simulator) on MacOS and Windows.
3.5 Bait Boat Application
The T12D offers specialized functions for bait boat control, including 50cm fishing spot accuracy, user-defined 100 fishing spots, 600m stable offshore control distance, real-time built-in telemetry, and fishing spot GPS coordinate saving. Ensure the receiver is changed to R16F when using the fishing spot function.
Image: Application to Bait Boat.
4. Засвар үйлчилгээ
- Цэвэрлэгээ: Дамжуулагч болон хүлээн авагчийг цэвэрлэхдээ зөөлөн, хуурай даавуу ашиглаарай. Уусгагч эсвэл зүлгүүрийн цэвэрлэгч хэрэглэхээс зайлсхий.
- Хадгалах: Дамжуулагч болон хүлээн авагчийг сэрүүн, хуурай газар, нарны шууд тусгал болон хэт өндөр температураас хол хадгална уу. Удаан хугацаагаар хадгалах бол гоожихоос сэргийлж батерейг нь салгаж авна уу.
- Батерейны арчилгаа: Follow the manufacturer's guidelines for charging and discharging LiPo batteries. Do not overcharge or over-discharge.
- Програм хангамж: Regularly check the Radiolink webОновчтой гүйцэтгэл, шинэ функцүүдэд нэвтрэх боломжийг хангахын тулд програм хангамжийн шинэчлэлт хийх сайт.
5. Алдаа засах
- Эрчим хүчгүй:
- Зайны суурилуулалтыг шалгаж, батерейг цэнэглэж байгаа эсэхийг шалгаарай.
- Батерейны туйлшралыг шалгана уу.
- Try connecting via Type-C for temporary power to diagnose.
- Дохио/холбох асуудал байхгүй:
- Дамжуулагч болон хүлээн авагч хоёулаа асаалттай байгаа эсэхийг шалгаарай.
- Repeat the binding procedure as described in the manual.
- Check for physical obstructions or excessive distance between transmitter and receiver during binding.
- Confirm receiver compatibility with the T12D.
- Хяналт хариу өгөхгүй байна:
- Check receiver connections to your model's servos/ESCs.
- Verify model settings in the transmitter menu.
- Ensure the transmitter's battery is not low.
- Simulator Not Working:
- Ensure the Type-C cable is securely connected to both the transmitter and computer.
- Verify that the simulator software recognizes the T12D as a joystick/controller.
- Check computer's device manager for proper driver installation (usually plug-and-play).
6. Техникийн үзүүлэлтүүд
| Загварын нэр | Радиолинк T12D |
| Сувгууд | 12 суваг |
| Давтамж | 2.4 GHz FHSS |
| Хяналтын зай | 4 км (2.49 миль) хүртэл |
| Загвар хадгалах | 32 загвар |
| Дэлгэц | 2.8-inch Color Screen (320*240 pixels) |
| Үндсэн материал | Хуванцар |
| Өнгө | Цагаан |
| Хэмжээ (L x W x H) | 20.7 x 17.4 x 10.7 см (8.15 x 6.85 x 4.21 инч) |
| Жин | 540 грамм (1.19 фунт) |
| Зайны шаардлага | Тийм (Батерей ороогүй болно) |
| Үйлдлийн горим | Алсын удирдлага |
| Онцлог шинж чанарууд | 12-channel RC transmitter with 32 storage modes, anti-interference, stable signal up to 4 km, compatible with external modules (ExpressLRS, TBS Crossfire), open-source simulator support, multi-language menu. |
7. Баталгаат хугацаа ба дэмжлэг
7.1 Бүтээгдэхүүний баталгаа
Information regarding product warranty is typically provided with the purchase documentation or on the manufacturer's official website. Please refer to these resources for details on warranty coverage and terms.
7.2 Хэрэглэгчийн дэмжлэг
For technical assistance, troubleshooting, or any product-related inquiries, please contact the Radiolink after-sales team. You can typically find contact information on the official Radiolink website or through the retailer where the product was purchased. Online support is also available via Amazon by contacting Radiolink Direct.
Radiolink is committed to providing high-quality, diversified, and competitive technological products, backed by a professional research and development team and automated testing processes.
