Танилцуулга
Thank you for choosing the LiNKFOR USB Gaming Microphone ULK113. This microphone is designed to provide clear audio for gaming, streaming, podcasting, and online communication. It features dynamic RGB lighting, one-tap noise cancellation, reverb effects, real-time gain control, and zero-latency monitoring. This manual will guide you through the setup, operation, and maintenance of your new microphone.
Багцын агуулга
Please ensure all items are present before proceeding with the setup:
- LiNKFOR USB Gaming Microphone
- Ширээний тавцан
- Шок бэхэлгээ
- Поп шүүлтүүр
- USB-C-аас USB-A кабель
- USB-A-аас USB-C адаптер
Image: All components included in the LiNKFOR USB Gaming Microphone package.
Тохируулах заавар
- Assemble the Desktop Stand: Screw the microphone stand pole into the weighted base until secure.
- Шок бэхэлгээг холбох: Screw the shock mount onto the top of the stand pole.
- Микрофон оруулах: Gently place the LiNKFOR USB Gaming Microphone into the shock mount. Ensure it is seated securely.
- Поп шүүлтүүрийг хавсаргана уу: Clip the pop filter onto the shock mount, positioning it in front of the microphone's grille.
- Төхөөрөмжид холбогдох:
- Connect the USB-C end of the provided cable to the USB-C port on the microphone.
- Connect the USB-A end of the cable to an available USB port on your PC, PS4/PS5, or Mac.
- For Android devices with OTG support, use the included USB-A to USB-C adapter to connect the microphone cable to your phone.
- Plug & Play: The microphone is plug-and-play, requiring no additional drivers for most compatible operating systems. Your device should automatically recognize the microphone.

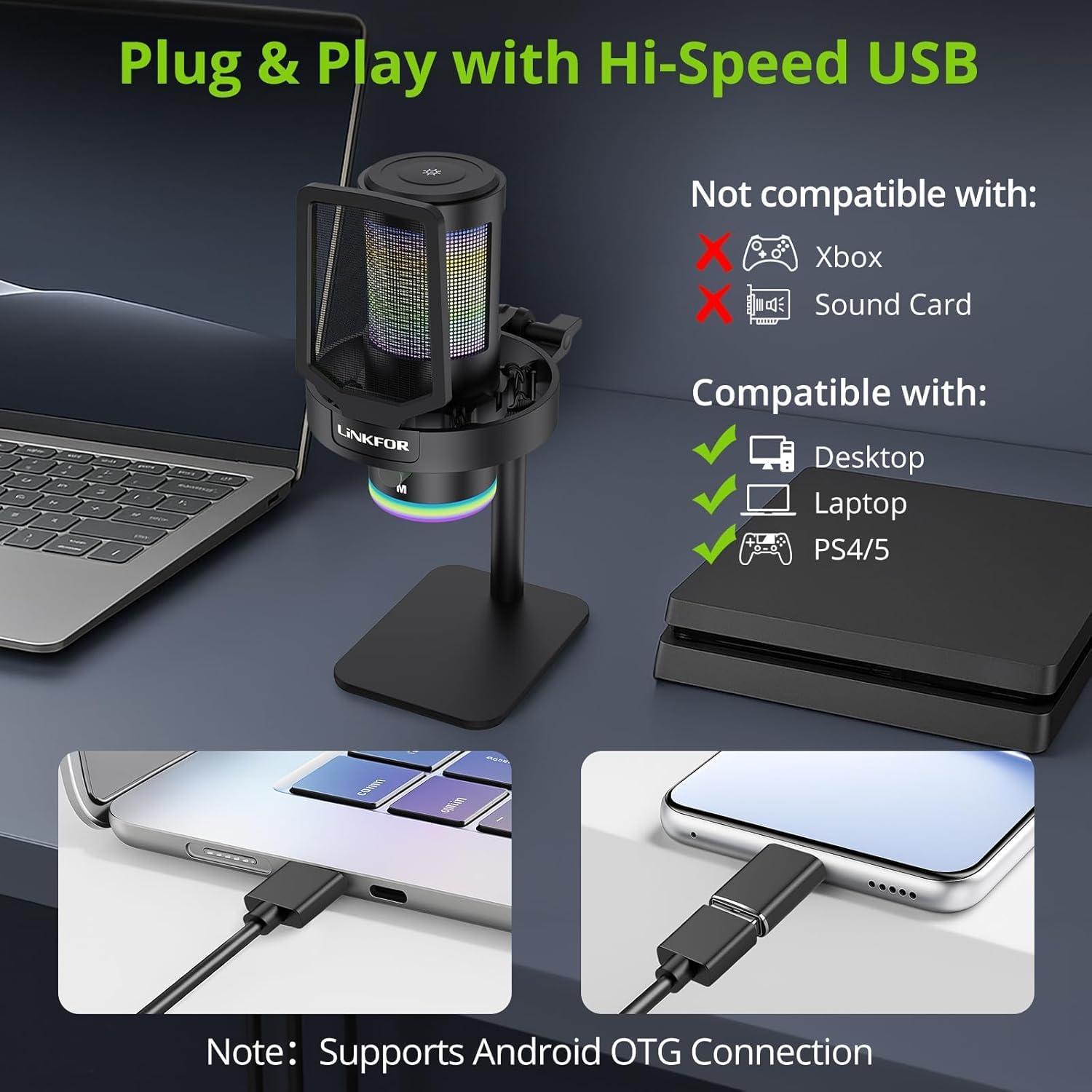

Image: The LiNKFOR USB Gaming Microphone connected to a laptop, demonstrating its plug-and-play functionality.
Видео: Дууслааview of the LiNKFOR USB Gaming Microphone, demonstrating its features and ease of use.
Ашиглалтын заавар
1. Dynamic RGB Lights & Touch Control
- Change RGB Modes: Touch the top of the microphone to cycle through various vibrant RGB lighting modes or solid colors.
- Гэрэл унтраах: Long-press the top of the microphone to turn off the RGB lights.

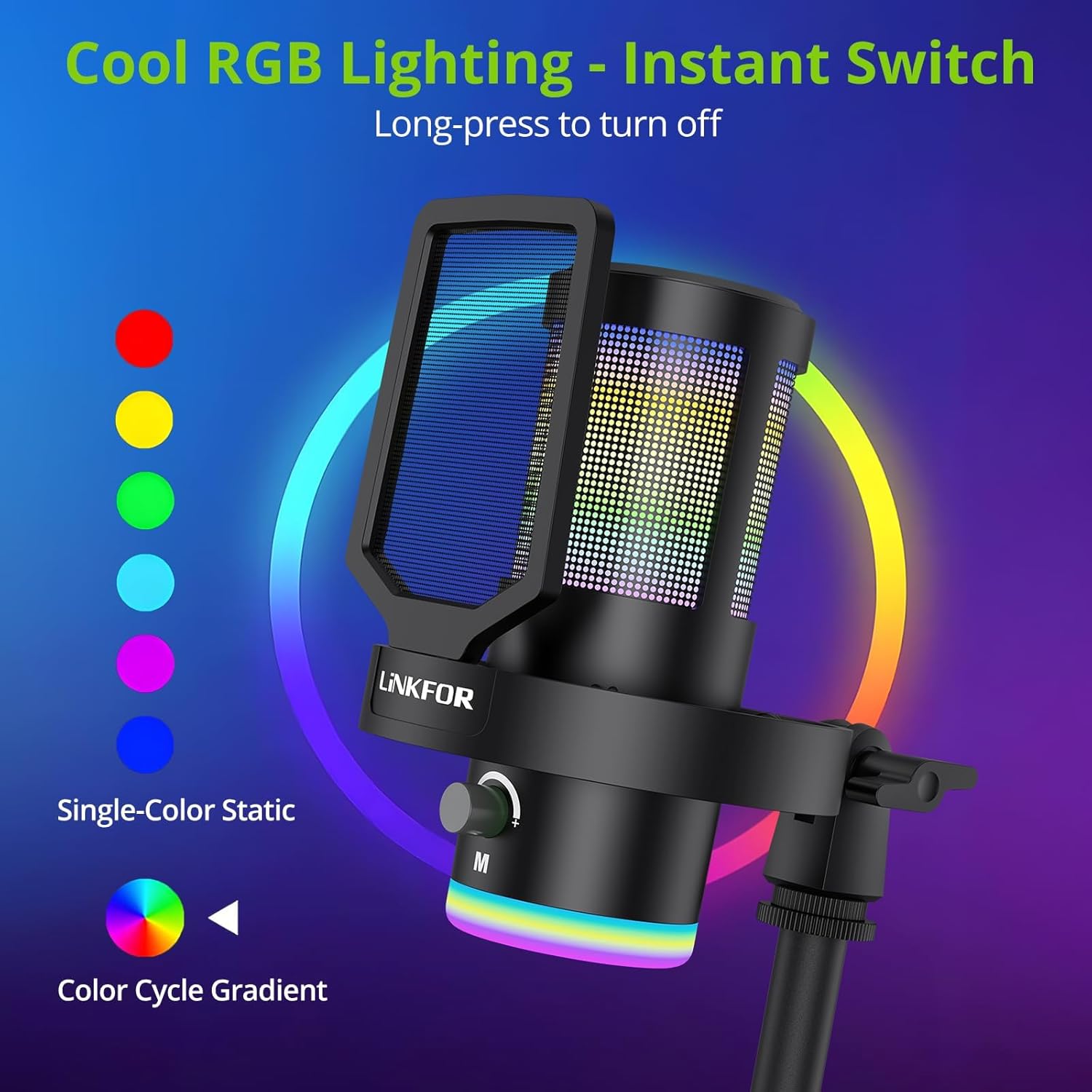

Image: The microphone showcasing its dynamic RGB lighting effects.
2. Studio Voice Clarity + One-Tap Noise Cancellation
- The professional cardioid capsule captures your voice clearly.
- Activate Noise Cancellation: Use the dedicated one-tap smart noise cancellation feature to reduce background sounds like fan noise, AC hum, or keyboard clicks.
Image: Visual representation of the microphone's noise reduction capabilities.
3. Reverb Effects & Real-Time Gain Control
- Дуу чимээний товчлуур: Use the dedicated reverb button to add depth to your audio.
- Олз авах товчлуур: Adjust the gain knob to fine-tune the input volume in real-time, preventing audio clipping or low volume during live sessions.
Image: A user operating the microphone with its reverb and gain control features.
4. Instant Mute + Zero-Delay Monitoring
- Дууг хаах товч: A touch-sensitive mute button allows for instant silencing of the microphone.
- 3.5 мм чихэвчний залгуур: Plug in headphones to the 3.5mm jack for real-time, zero-latency monitoring of your audio. A dedicated volume dial controls headphone output.

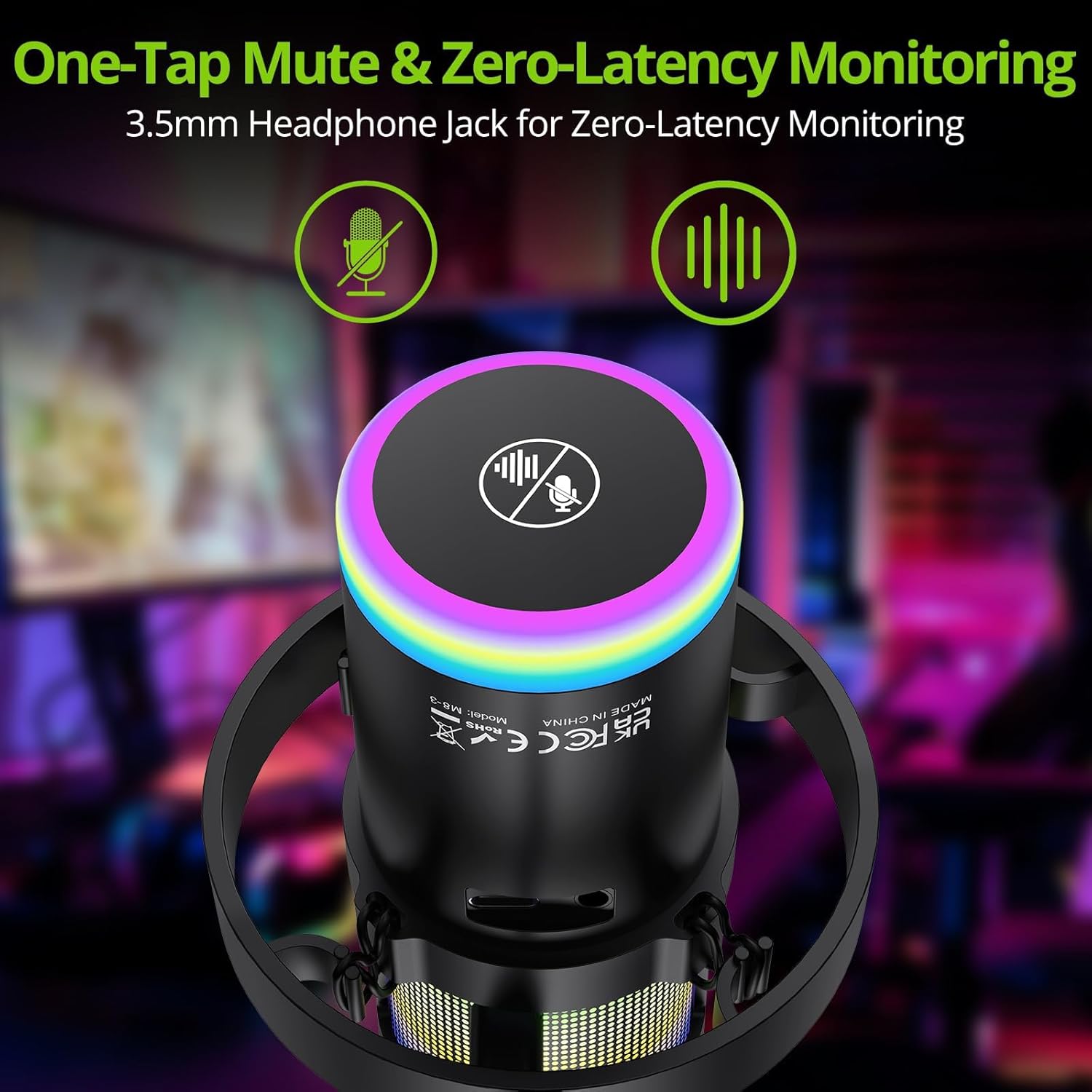

Image: Close-up of the microphone's top, highlighting the mute button and headphone jack for monitoring.
5. Хяналтуудview
Image: A detailed diagram illustrating the various controls on the LiNKFOR USB Gaming Microphone, including the RGB lighting touch control, 3.5mm headphone jack, USB-C port, and volume/mode knob.
Тохиромжтой байдал
The LiNKFOR USB Gaming Microphone is designed for broad compatibility:
- Тохиромжтой: PC (Windows), Mac, PS4, PS5, Android (OTG-capable phones).
- Тохирохгүй: Xbox, dedicated sound cards (may interfere with plug-and-play functionality).
Засвар үйлчилгээ
- Цэвэрлэгээ: Use a soft, dry cloth to clean the microphone's exterior. Do not use liquid cleaners or solvents.
- Хадгалах: Микрофоныг ашиглаагүй үед нарны шууд тусгал, хэт температураас хол, сэрүүн, хуурай газар хадгална.
- Харьцуулах: Avoid dropping the microphone or subjecting it to strong impacts, as this may damage internal components.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Микрофоноос дуу гарахгүй байна | Incorrect device selection; loose cable connection; microphone muted. | Check your device's sound settings to ensure the LiNKFOR microphone is selected as the input device. Reconnect the USB cable. Ensure the microphone is not muted (check the mute button/indicator). |
| RGB гэрэл ажиллахгүй байна | Lights turned off; power issue. | Touch the top of the microphone to cycle through lighting modes. Long-press to turn them on/off. Ensure the microphone is properly connected and receiving power. |
| Аудио гажуудсан эсвэл хэт чимээгүй байна | Gain setting too high/low; microphone too close/far from source. | Adjust the gain knob on the microphone. Check your device's input volume settings. Position the microphone appropriately (typically 6-12 inches from the sound source). |
| Headphone monitoring not working | Headphones not properly connected; headphone volume too low. | Ensure headphones are fully plugged into the 3.5mm jack. Adjust the headphone volume dial on the microphone. |
Үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Загварын дугаар | ULK113 |
| Холболтын технологи | USB Type-C |
| Микрофоны төрөл | Condenser, Cardioid |
| Дуу шуугианы харьцаа | 85 дБ |
| Онцлог шинж чанарууд | RGB Lighting, Noise Cancellation, Mute Button, Volume Control, Headphone Jack, Reverb Effects |
| Тохиромжтой төхөөрөмжүүд | PC, PS4/PS5, Mac, Android (OTG) |
| Зүйлийн жин | 1.14 фунт |
| Бүтээгдэхүүний хэмжээс | 7.28 x 4.53 x 4.33 инч |
| Материал | Хуванцар |
Баталгаат болон дэмжлэг
For warranty information or technical support, please refer to the official LiNKFOR webсайтаас авах эсвэл тэдний хэрэглэгчийн үйлчилгээтэй холбогдоно уу. Баталгаат хугацааны нэхэмжлэлийн талаар худалдан авалтын баримтаа хадгална уу.
хаягаар зочилж болно LiNKFOR Store on Amazon нэмэлт мэдээлэл, дэмжлэгийн эх сурвалжийг авна уу.
