Танилцуулга
The PYY Tire Grooving Tool is designed for precise modification and customization of tire treads. This tool allows users to deepen existing grooves or create new patterns on tires, enhancing traction and extending tire life. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your PYY Tire Grooving Tool.
Аюулгүй байдлын чухал мэдээлэл
Always observe the following safety precautions to prevent injury or damage to the tool:
- Wear appropriate personal protective equipment, including safety glasses and heat-resistant gloves, during operation.
- Ажлын талбайг агааржуулалт сайтай, шатамхай материалаас ангид байлгах.
- Disconnect the tool from the power source before performing any maintenance, changing blades, or when not in use.
- Do not touch the grooving blade when the tool is powered on or immediately after use, as it will be extremely hot.
- Хүүхэд болон хажууд байгаа хүмүүсийг үйл ажиллагааны талбайгаас хол байлга.
- Use the tool only for its intended purpose of tire grooving.
Багцын агуулга
Таны багцад бүх зүйл байгаа эсэхийг шалгана уу:
- PYY Tire Grooving Tool (Handpiece)
- Power Control Unit (DC Tire Regroover)
- Цахилгаан кабель
- Assorted Grooving Blades
- Хамгаалалтын бээлий

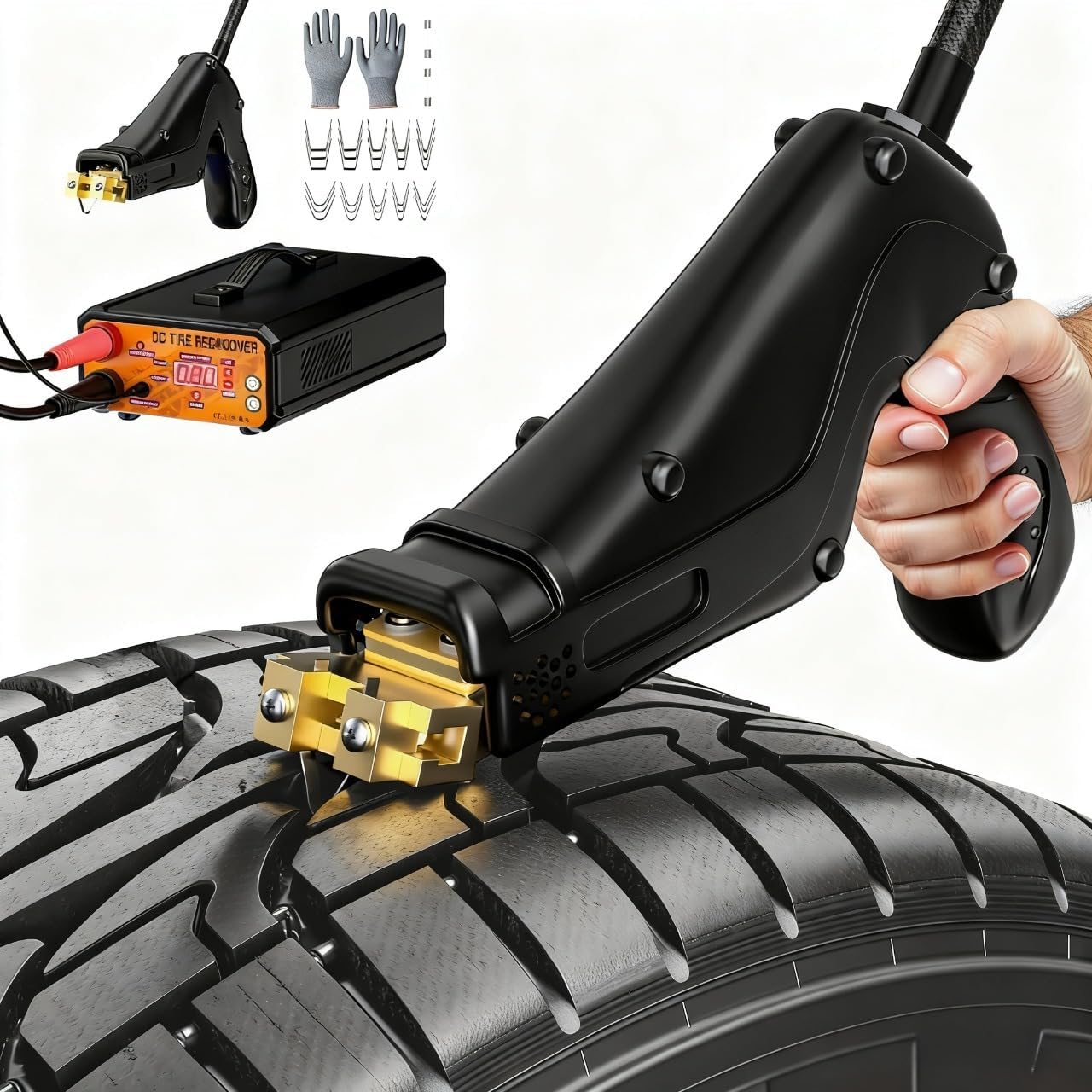

Image: The PYY Tire Grooving Tool kit, showing the main handpiece, the power control unit with a digital display, various grooving blades, and a pair of protective gloves. The handpiece is depicted in use on a tire, illustrating its function.
Тохируулах заавар
Эхний тохиргоог хийхийн тулд дараах алхмуудыг дагана уу:
- Connect Power Control Unit: Place the power control unit on a stable, flat surface. Connect the power cable to the unit and then to a suitable 110V power outlet.
- Connect Handpiece: Plug the handpiece cable securely into the designated port on the power control unit.
- Install Grooving Blade: Ensure the tool is unplugged. Loosen the screws on the handpiece blade holder. Carefully insert the desired grooving blade into the holder, ensuring it is seated correctly. Tighten the screws firmly to secure the blade.
- Асаах: Turn on the power control unit using the main power switch. The digital display should illuminate.
Operating the PYY Tire Grooving Tool
Proper operation ensures efficient and safe tire grooving:
- Tire Preparation: Clean the tire surface thoroughly to remove dirt, debris, and oil. Mark the desired grooving lines on the tire with a chalk or marker for guidance.
- Температурын тохиргоо: Use the controls on the power unit to set the desired temperature. Start with a lower setting and gradually increase it until the blade cuts smoothly through the rubber without excessive smoke or tearing. Different rubber compounds may require different temperatures.
- Grooving Technique: Hold the handpiece firmly with both hands if possible, or one hand if comfortable, ensuring a stable grip. Apply steady, consistent downward pressure and move the tool along the marked line at a uniform speed. Avoid jerky movements or excessive force, which can lead to uneven grooves or blade damage.
- Гүн хяналт: The depth of the groove is controlled by the blade type and the pressure applied. Practice on a scrap tire or an inconspicuous area first to achieve the desired depth and consistency.
- Хөргөх: After completing the grooving, turn off the power unit and allow the blade to cool down completely before handling or storing.
Засвар үйлчилгээ, арчилгаа
Regular maintenance extends the life of your tool:
- Хутга цэвэрлэх: After the blade has cooled, carefully remove it and clean any accumulated rubber residue using a stiff brush or appropriate cleaning solution. Ensure the blade is dry before reinstallation or storage.
- Нэгж цэвэрлэх: Wipe the power control unit and handpiece with a dry or slightly damp даавуу. Зүлгүүрийн цэвэрлэгч хэрэглэж болохгүй, эсвэл төхөөрөмжийг усанд дүрж болохгүй.
- Хадгалах: Store the tool and its components in a clean, dry place, away from direct sunlight and extreme temperatures. Keep blades in a protective container to prevent damage and injury.
- Кабелийн үзлэг: Periodically inspect power and handpiece cables for any signs of wear, cuts, or damage. Replace damaged cables immediately.
Алдааг олж засварлах
Нийтлэг асуудлууд болон тэдгээрийн шийдлүүдийг энэ хүснэгтээс харна уу:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Багаж халахгүй байна | Power cable not connected; Power switch off; Faulty outlet | Check all cable connections; Ensure power switch is ON; Test outlet with another device |
| Uneven or rough grooves | Incorrect temperature setting; Inconsistent pressure/speed; Dull or damaged blade | Adjust temperature; Maintain steady pressure and speed; Replace blade |
| Ир нь үр дүнтэй огтлохгүй байна | Temperature too low; Blade worn out; Incorrect blade for tire type | Increase temperature; Replace blade; Ensure correct blade type is used |
| Excessive smoke during operation | Temperature too high; Too much pressure | Reduce temperature; Lessen downward pressure |
Техникийн үзүүлэлтүүд
- Брэнд: PYY
- Загварын дугаар: PYYTJHC96011YEUS
- Эрчим хүч: 1000 ватт
- Ботьtage: 110 вольт
- Материал: Зэвэрдэггүй ган
- Handpiece Dimensions (L x W x H): 15.24 x 1.27 x 12.7 см
- Item Weight (Handpiece): 454 гр
- Онцлогууд: Anti-slip base (on handpiece for secure grip)
Баталгаат болон хэрэглэгчийн дэмжлэг
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official PYY webсайт. Худалдан авалтын баримтаа худалдан авалтын баталгаа болгон хадгалаарай.
