Garvee 60'' Tow Behind Lawn Dethatcher Instruction Manual

1. Танилцуулга

This manual provides essential information for the safe and effective operation, assembly, and maintenance of your Garvee 60'' Tow Behind Lawn Dethatcher. Please read this manual thoroughly before attempting to assemble, operate, or maintain the equipment. Retain this manual for future reference.

Бүтээгдэхүүн дууссанview

The Garvee 60'' Tow Behind Lawn Dethatcher is designed to efficiently remove thatch, dead grass, leaves, and other debris from your lawn. It features 24 durable spring steel tines and a 60-inch working width, making it suitable for large areas. Its robust construction ensures stability and effective ground contact for a thorough clean.

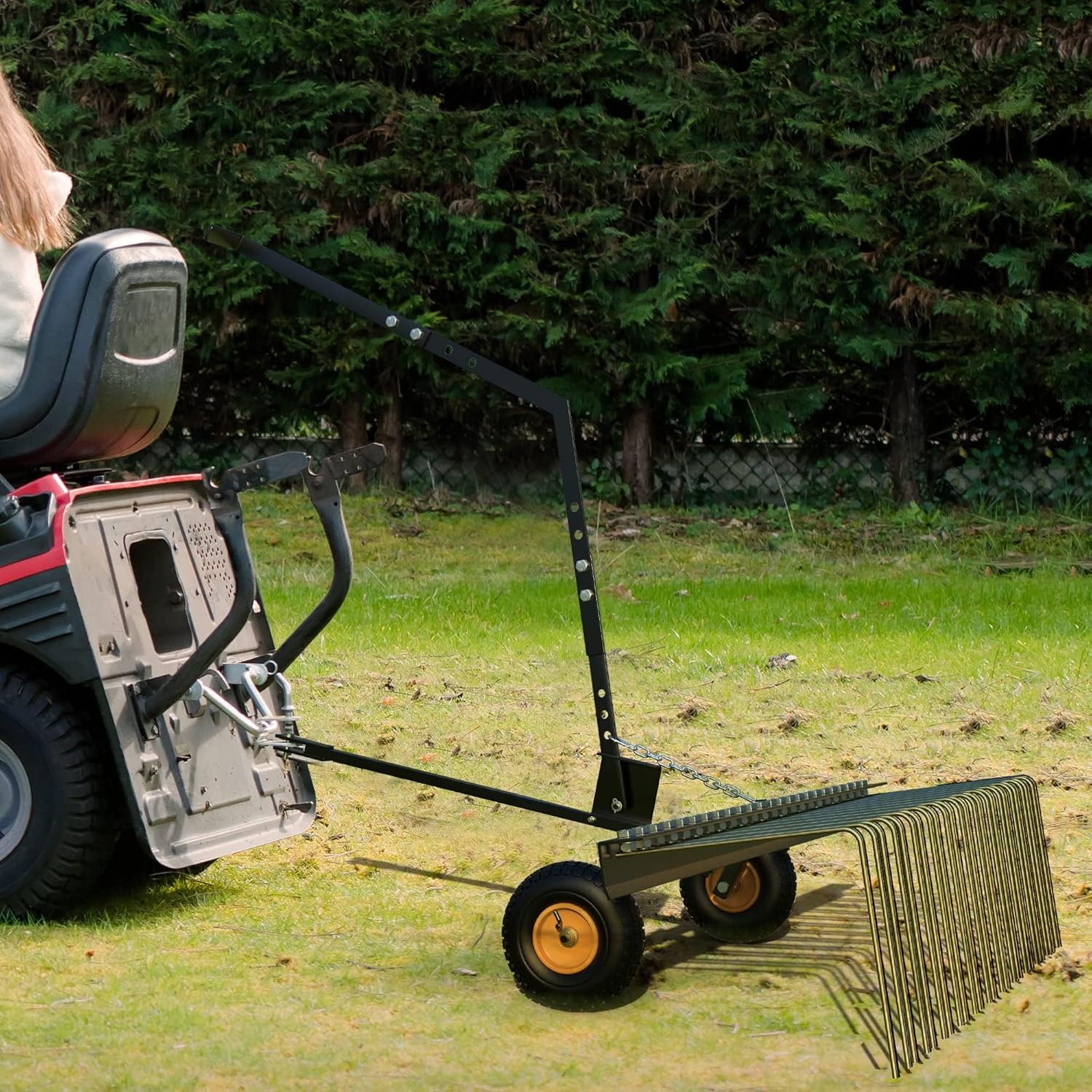

Figure 1.1: Garvee 60-inch dethatcher being towed by a riding lawn mower across a green lawn.

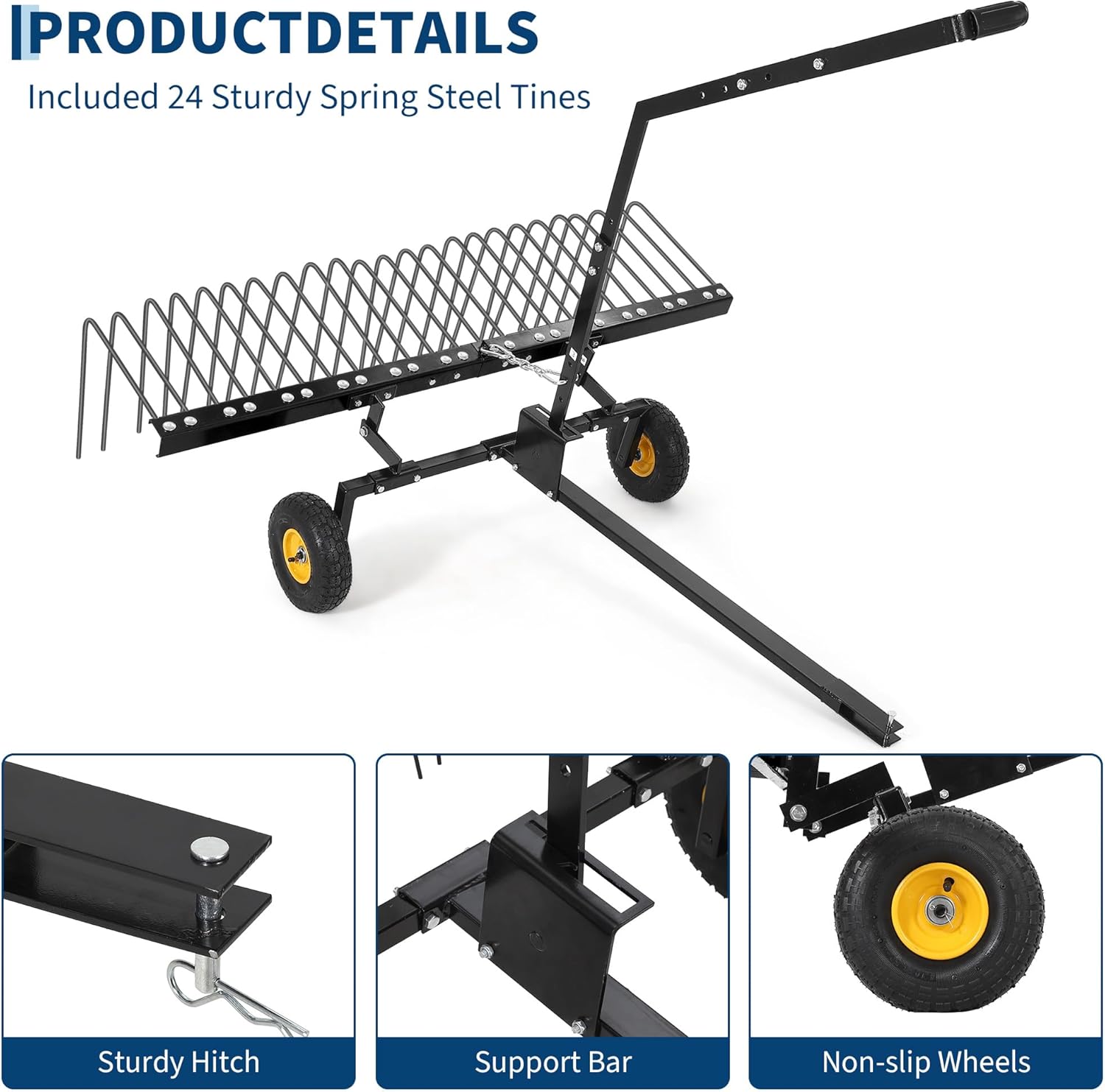

Зураг 1.2: Нарийвчилсан view of the Garvee dethatcher components, including the sturdy spring steel tines, hitch mechanism, support bar, and non-slip wheels.

2. Аюулгүй байдлын мэдээлэл

Your safety and the safety of others are paramount. Always follow these safety guidelines to prevent injury and equipment damage.

Аюулгүй байдлын ерөнхий дүрмүүд

• Read and understand all instructions in this manual before operating the dethatcher.
• Хамгаалалтын шил, бээлий, бат бөх гутал зэрэг хувийн хамгаалах хэрэгслийг (PPE) өмс.
• Keep children, pets, and bystanders away from the operating area.
• Inspect the dethatcher for any damaged or loose parts before each use. Do not operate if damage is found.
• Ensure all fasteners are tight before and during operation.

Ашиглалтын аюулгүй байдал

• Operate the tow vehicle at a safe, slow speed, especially on uneven terrain or when turning.
• Avoid operating on excessively steep slopes where stability may be compromised.
• Ensure the dethatcher is securely hitched to the tow vehicle before starting.
• Be aware of underground obstacles (e.g., sprinkler heads, roots, rocks) that could damage the tines or equipment.
• Never leave the dethatcher unattended while the tow vehicle is running.

3. Угсрах заавар

Follow these steps carefully to assemble your Garvee 60'' Tow Behind Lawn Dethatcher.

Савлаж байна

Carefully remove all components from the packaging. Lay them out on a clean, flat surface and verify that all parts are present. Refer to the parts diagram (if available) to identify each component.

Шаардлагатай хэрэгслүүд

• Тохируулах эрэг чангалах түлхүүр эсвэл залгуурын багц
• бахө
• Хамгаалалтын шил

Угсралтын үе шатууд

1. Attach the Wheel Assemblies: Secure the wheels to the main frame using the provided axles, washers, and cotter pins. Ensure wheels spin freely.
2. Assemble the Tine Bar: Attach the spring steel tines to the tine bar according to the pre-drilled holes. Ensure each tine is securely fastened.
3. Connect the Main Frame and Tine Bar: Attach the tine bar assembly to the main frame using the specified bolts and nuts.
4. Install the Hitch Arm: Secure the hitch arm to the front of the main frame. Ensure the high-strength pin hitch is properly aligned for connection to your tow vehicle.
5. Attach the Lift Handle: Mount the lift handle to the designated position on the frame. This handle allows for easy adjustment of tine height.
6. Secure the Adjustable Chain: Connect the adjustable fixed chain between the lift handle mechanism and the tine bar to control the dethatching depth.

Figure 3.1: Detailed components for assembly, including hitch, chain, and elastic device.

4. Ашиглалтын заавар

Proper operation ensures efficient dethatching and prolongs the life of your equipment.

Attaching to a Tow Vehicle

• Align the dethatcher's hitch with the hitch point on your lawn tractor, ATV, or garden tractor.
• Insert the hitch pin through both the dethatcher's hitch and the tow vehicle's hitch point.
• Secure the hitch pin with the cotter pin or R-clip to prevent accidental detachment.
• Ensure the connection is stable and there is no excessive play.

Adjusting Dethatching Depth

• The dethatcher features a user-friendly lift handle for easy height adjustment.
• For light dethatching or removing surface debris, raise the tines slightly so they just skim the top of the lawn.
• For heavier dethatching to remove compacted thatch, lower the tines to make more aggressive contact with the ground.
• Avoid setting the tines too low, as this can damage healthy grass, the tines themselves, or the underlying soil.

Dethatching Process

• Start the tow vehicle and engage the dethatcher.
• Operate the tow vehicle at a slow, consistent speed. Excessive speed can cause the dethatcher to bounce, reducing effectiveness and potentially damaging the equipment.
• Make overlapping passes to ensure complete coverage of the lawn. Overlap each pass by a few inches to avoid missed strips.
• Periodically check the dethatcher for accumulated debris and clear it as needed to maintain efficiency.
• The dethatcher is effective for removing leaves, weeds, dry branches, and pine straw.

Figure 4.1: Dethatcher in operation, pulled by a tractor.

Figure 4.2: Dethatcher clearing grass, straw, and leaves.

Figure 4.3: Dethatcher's 60-inch coverage and debris removal capabilities.

Figure 4.4: Dethatcher clearing dead branches, weeds, and straw.

5. Засвар үйлчилгээ

Regular maintenance ensures optimal performance and extends the lifespan of your dethatcher.

Хэрэглэх бүрийн дараа

• Шүдийг цэвэрлэх: Remove any accumulated grass, leaves, or debris from the spring steel tines.
• Гэмтлийг шалгах: Check all tines for bends, breaks, or excessive wear. Inspect the frame and hitch for any signs of damage or loose fasteners.
• Хадгалах: Store the dethatcher in a dry, covered area to protect it from weather elements and prevent rust.

Тогтмол засвар үйлчилгээ

• Tine Replacement: If individual tines become worn or damaged, they can be replaced using basic tools. Ensure replacement tines are compatible with the original specifications.
• Дугуйн даралт: Check the tire pressure periodically and inflate to the recommended PSI (if applicable) to ensure smooth operation and even ground contact.
• Тосолгоо: Apply a light lubricant to any pivot points or moving parts as needed to ensure smooth operation.
• Бэхэлгээний шалгалт: Regularly check and tighten all bolts, nuts, and pins to ensure the structural integrity of the dethatcher.

6. Алдаа засах

Энэ хэсэг нь танд тулгарч болох нийтлэг асуудлуудын шийдлүүдийг өгдөг.

7. Техникийн үзүүлэлтүүд

Key technical specifications for the Garvee 60'' Tow Behind Lawn Dethatcher.

Зураг 7.1: Бүтээгдэхүүний хэмжээсийн диаграмм.

8. Баталгаат хугацаа ба дэмжлэг

Garvee is committed to providing quality products and customer satisfaction. For specific warranty information, please refer to the documentation included with your purchase or visit the official Garvee website. If you require technical assistance, replacement parts, or have any questions regarding your Garvee 60'' Tow Behind Lawn Dethatcher, please contact Garvee customer service through the contact information provided in your purchase details or on the brand's official channels.
