KBS 20-IN-1 Bread Maker MBF-014A User Manual

1. Оршил ба түүнээс дээшview

Thank you for choosing the KBS 20-IN-1 Bread Maker, Model MBF-014A. This appliance is designed to simplify your bread-making process with its versatile programs and user-friendly features. Please read this manual thoroughly before operation to ensure safe and optimal use.

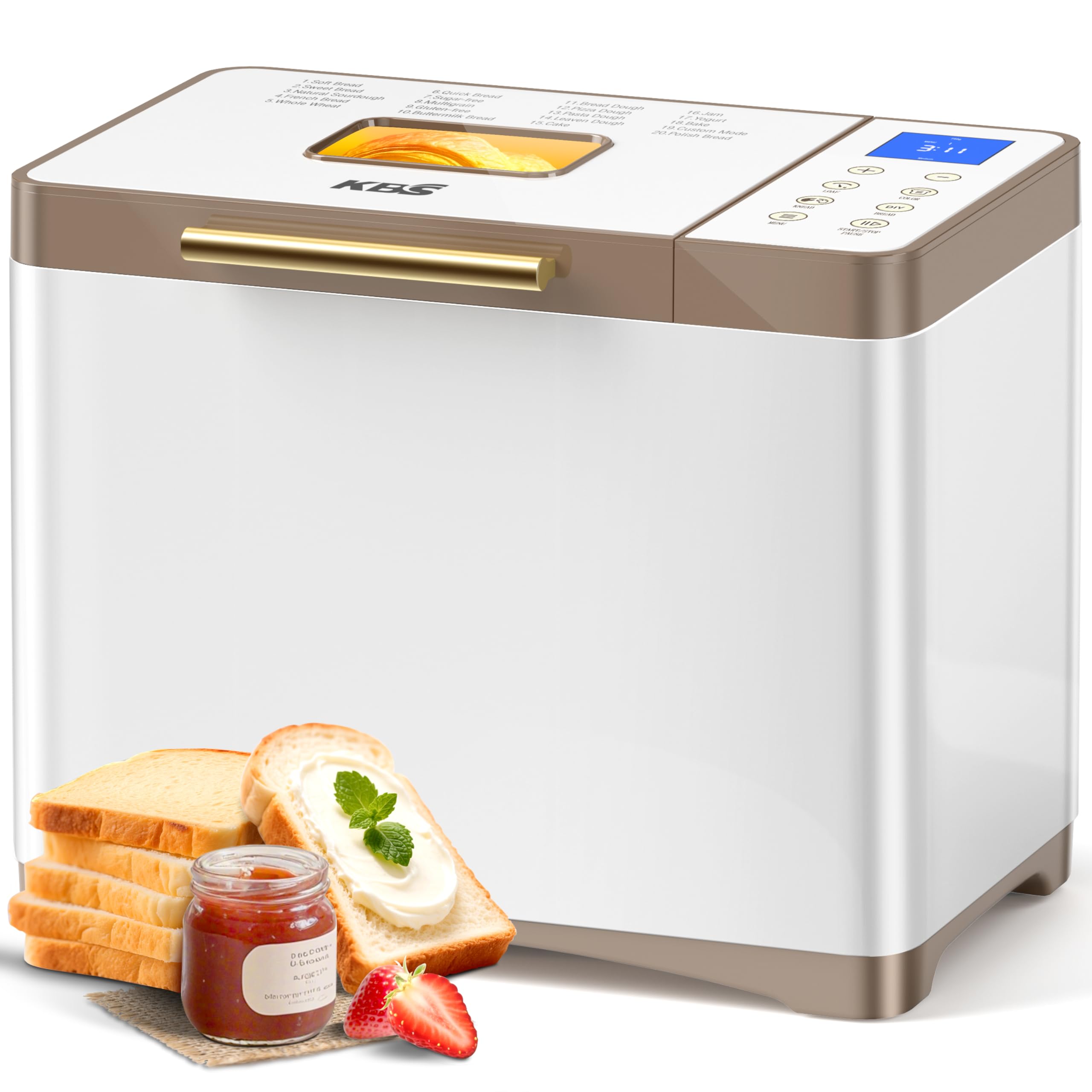

Image: KBS 20-IN-1 Bread Maker, Model MBF-014A, in White-Gold color.

Гол онцлогууд:

• 20 Pre-programmed Menus: Including Soft Bread, Sweet Bread, Natural Sourdough, French Bread, Whole Wheat, Quick Bread, Sugar-free, Multigrain, Gluten-free, Buttermilk Bread, Bread Dough, Pizza Dough, Pasta Dough, Leaven Dough, Cake, Jam, Yogurt, Bake, Custom Mode, and Polish Bread.
• Custom Program (Menu 19): Allows 100% customization of time for each of the 6 steps: autolysing, basic rise, degassing, re-rise, reshape, and last rise. Settings can be saved for repeated use.
• Nonstick Ceramic Pan & Stainless Steel Paddle: Features a 3000°F-fired ceramic pan for long-lasting nonstick performance and a durable stainless steel paddle tested for 10,000 cycles.
• 360° Hot Air Circulation: Ensures uniform baking and browning for a crispier crust and fluffier interior.
• 650W Variable-Frequency Motor: Provides 360° planetary mixing and adjusts speed for different doughs, offering energy efficiency and extended lifespan.
• 4-Season Constant Temperature System: Dual NTC and PID temperature control maintains consistent warmth, precisely locking onto an optimal 38°C rising zone.
• Тохиромжтой функцууд: 15-hour delay timer, 60-minute keep warm function, and 15-minute power outage нөөц.
• Capacity & Crust Control: Bakes 1, 1.5, or 2 lb loaves with three crust settings (light, medium, dark).
• Durable & Intuitive Design: High-quality stainless steel body with a seamless glass digital touch panel for easy cleaning and modern aesthetics.

2. Аюулгүй ажиллагааны заавар

To prevent personal injury or property damage, please observe the following safety precautions:

• Always ensure the bread maker is placed on a stable, flat, heat-resistant surface, away from flammable materials.
• Төхөөрөмж, утас, залгуурыг ус болон бусад шингэнд дүрж болохгүй.
• Ашиглалтын явцад хүүхэд, тэжээвэр амьтдыг төхөөрөмжөөс хол байлга. Гаднах гадаргуу нь халуун болж болно.
• Unplug the bread maker from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Гэмтсэн утас, залгууртай, эсвэл төхөөрөмж эвдэрсэн эсвэл ямар нэгэн байдлаар гэмтсэний дараа ямар ч төхөөрөмжийг бүү ажиллуул.
• Хөдөлгөөнт хэсгүүдэд хүрэхээс зайлсхий.
• Үйлдвэрлэгчээс санал болгоогүй эсвэл худалдсан хавсралтыг бүү ашигла.
• Халуун хий, цахилгаан шатаагч, халсан зууханд хийж болохгүй.
• Халуун тос эсвэл бусад халуун шингэн агуулсан төхөөрөмжийг зөөхдөө маш болгоомжтой байгаарай.
• Төхөөрөмжийг ахуйн зориулалтаар ашиглахаас өөр зориулалтаар бүү ашиглаарай.
• Боть байгаа эсэхийг баталгаажуулна ууtagТөхөөрөмж дээр заасан e нь таны орон нутгийн сүлжээний эзлэхүүнтэй тохирч байнаtage төхөөрөмжийг холбохын өмнө.
• The bread pan and paddle are nonstick ceramic. Avoid using metal utensils that could scratch the surface.

3. Бүтээгдэхүүний эд анги, дагалдах хэрэгсэл

Familiarize yourself with the parts of your KBS Bread Maker and the included accessories.

Image: Included accessories for the KBS Bread Maker.

Дагалдах хэрэгсэлд багтсан:

• 1 x Nonstick Ceramic Pan
• 1 x Stainless Steel Paddle
• 1 x халуунд тэсвэртэй бээлий
• 1 x Хэмжих аяга
• 1 х хэмжих халбага
• 1 x Hook (for paddle removal)
• 1 х хэрэглэгчийн гарын авлага (энэ баримт бичиг)
• 1 x жорны ном

Хяналтын самбар дууссанview:

Зураг: Нарийвчилсан view of the KBS Bread Maker's digital touch panel and menu options.

The seamless glass digital panel features intuitive touch controls for selecting menus, loaf size, crust color, and starting/stopping the baking process. A clear LCD display shows program status and time remaining.

4. Тохиргоо

1. Савлах: Carefully remove all packaging materials and accessories. Inspect the bread maker for any damage.
2. Цэвэрлэгээ: Before first use, clean the bread pan, paddle, and other accessories with warm, soapy water. Wipe the exterior of the appliance with a damp даавуу. Бүх хэсгүүдийг сайтар хатаана.
3. Байршил: Place the bread maker on a dry, stable, heat-resistant countertop, ensuring adequate ventilation around the unit. Do not place it near heat sources or in direct sunlight.
4. Талхны хэвийг оруулах: Place the nonstick ceramic bread pan into the baking chamber. Ensure it is securely seated by twisting it gently until it locks into place.
5. Attach Kneading Paddle: Insert the stainless steel kneading paddle onto the shaft at the bottom of the bread pan.
6. Эрчим хүчний холболт: Plug the power cord into a grounded electrical outlet. The bread maker will beep, and the display will light up, indicating it is ready for operation.

5. Ашиглалтын заавар

Follow these steps to bake your desired bread or prepare other items using your KBS Bread Maker.

Үндсэн үйл ажиллагаа:

1. Найрлага нэмэх: Refer to your recipe book. Typically, liquids are added first, followed by dry ingredients, and finally yeast on top. Ensure yeast does not come into direct contact with liquids or salt initially.
2. Тагийг хаах: Close the lid of the bread maker securely.
3. Цэс сонгох: Press the "MENU" button repeatedly to cycle through the 20 available programs until your desired program number is displayed.


   Image: The 20 pre-programmed menu options on the bread maker.

4. Талхны хэмжээг сонгоно уу: Press the "LOAF" button to choose between 1 LB, 1.5 LB, or 2 LB loaf sizes, if applicable for the selected program.


   Image: Loaf size and crust color selection options.

5. Хальсны өнгийг сонгоно уу: Press the "COLOR" button to choose between Light, Medium, or Dark crust settings, if applicable.
6. Хойшлуулах цаг тохируулна уу (заавал биш): If you wish to delay the start of the baking process, use the "+" and "-" buttons to set the desired delay time (up to 15 hours). The delay time includes the baking time.


   Image: Features for delayed start, keep warm, and power backup.
7. Жигнэж эхлэх: Press the "START/STOP/PAUSE" button to begin the program. The bread maker will start kneading.
8. Хяналт: You can observe the kneading and rising process through the viewing window. The 360° hot air circulation ensures even baking.


   Image: Illustration of 360° surround convection and NTC/PID temperature control.

9. Хөтөлбөрийн төгсгөл: Once the program is complete, the bread maker will beep and automatically switch to the 60-minute "Keep Warm" function.
10. Талхыг хасах: Using the provided heat-resistant glove and hook, carefully remove the bread pan from the appliance. Invert the pan to release the bread onto a wire rack to cool. Remove the kneading paddle from the bread using the hook if it remains embedded.

Using Custom Mode (Menu 19):

The Custom Mode allows you to precisely control each stage of the bread-making process:

• Select Menu 19.
• Use the "+" and "-" buttons to adjust the duration for each of the 6 steps: Autolysing, Basic Rise, Degassing, Re-rise, Reshape, and Last Rise.
• Once settings are finalized, press "START/STOP/PAUSE" to save and begin. These settings will be remembered for future use of Custom Mode.

6. Засвар үйлчилгээ, цэвэрлэгээ

Regular cleaning and maintenance will prolong the life of your bread maker and ensure optimal performance.

Цэвэрлэх заавар:

1. Салгах: Цэвэрлэхийн өмнө төхөөрөмжийг үргэлж залгуураас салгаад бүрэн хөргөхийг хүлээнэ үү.
2. Талх таваг ба зуурах сэлүүр:
   • Remove the bread pan and kneading paddle. If the paddle is stuck, fill the pan with warm water and let it soak for 30 minutes before removing.
   • Wash with warm, soapy water using a soft sponge or cloth. Do not use abrasive cleaners or metal scouring pads, as this can damage the nonstick ceramic coating.
   • Rinse thoroughly and dry completely before reassembling or storing. The ceramic pan is dishwasher safe, but hand washing is recommended to preserve the nonstick coating.
3. Гадна: Талхны машины гадна талыг зөөлөн, d-ээр арчинаamp даавуу. Зүлгүүрийн цэвэрлэгч хэрэглэж болохгүй.
4. Таг ба ViewЦонх: Wipe the inside of the lid and the viewзартай цонхamp даавуу. Зөрүүд толбоны хувьд зөөлөн угаалгын нунтаг хэрэглээрэй.
5. Жигнэх камер: Зөөлөн сойз эсвэл сойзоор жигнэх тасалгаанаас үйрмэг эсвэл үлдэгдлийг арилгана.amp даавуу.

Хадгалах:

Ensure all parts are clean and dry before storing. Store the bread maker in a cool, dry place, away from direct sunlight and out of reach of children.

7. Алдаа засах

If you encounter any issues with your bread maker, refer to the following common problems and solutions:

If the problem persists, please contact KBS customer support.

8. Техникийн үзүүлэлтүүд

• Загвар: MBF-014A
• Эрчим хүч: 650 Вт
• Ботьtage: 120 вольт
• Хүчин чадал: Up to 2 Pounds (1LB, 1.5LB, 2LB options)
• Бүтээгдэхүүний хэмжээ: 8"D x 13.4"W x 11"H
• Барааны жин: 12.87 фунт
• Материал: 100% Stainless Steel Body, Ceramic NonStick Pan, Ceramic Paddle
• Хөтөлбөрийн тоо: 20
• Саатал таймер: 15 цаг хүртэл
• Халуун байлгах функц: 60 минут
• Цахилгаан тасалдлыг сэргээх: 15 минут
• Царцдасын өнгө: Гэрэл, Дунд, Хар

9. Баталгаат хугацаа ба дэмжлэг

KBS is committed to providing high-quality products and excellent customer service.

Техникийн дэмжлэг:

Our team of experienced engineers and professional customer service representatives is available to assist you. We aim to deliver customized solutions with rapid response within 12 hours.

For technical assistance or inquiries, please visit the official KBS website or contact our customer service team through the contact information provided on the product packaging or official webсайт.

Баталгаат заргад зориулж худалдан авалтаа нотлох баримтаа үлдээнэ үү.
