BLACK+DECKER 4-Burner Induction Cooktop

1. Танилцуулга

Thank you for choosing the BLACK+DECKER 4-Burner Induction Cooktop, Model BXICHCPB4BFZ. This built-in cooktop is designed to offer high performance, practicality, and a modern aesthetic to your kitchen. With a total power output of 7200W (220V), it ensures rapid and uniform heating, significantly reducing cooking times. It features two 2100W burners and two 1500W burners, allowing for versatile cooking with different power levels simultaneously. The innovative Full Zone technology expands the induction area between two burners, accommodating larger or uniquely shaped cookware with maximum efficiency. The ceramic glass surface provides a sophisticated look and is exceptionally easy to clean, combining elegance with daily convenience.

2. Аюулгүй ажиллагааны чухал заавар

Аюулгүй ажиллагааг хангах, гэмтэл бэртлээс урьдчилан сэргийлэхийн тулд дараах аюулгүй ажиллагааны зааврыг анхааралтай уншиж, дагаж мөрдөнө үү.

• Цахилгааны аюулгүй байдал: Ensure the cooktop is connected to a properly grounded 220V electrical outlet. Do not use extension cords or adapters. Disconnect power before any cleaning or maintenance.
• Хоолны сав: Use only induction-compatible cookware with a flat bottom. Incompatible cookware will not heat.
• Халуун гадаргуу: Although the induction surface itself does not heat up directly, residual heat from the cookware can make the cooking zones hot. Exercise caution and allow the surface to cool before touching.
• Хүүхэд ба тэжээвэр амьтад: Keep children and pets away from the cooktop during operation and while it is cooling down. Utilize the child safety lock feature.
• Металл объектууд: Do not place metallic objects such as knives, forks, spoons, lids, or aluminum foil on the cooktop surface, as they can become hot.
• Агааржуулалт: Ensure adequate ventilation around the cooktop as per installation instructions to prevent overheating.
• Шатамхай материал: Keep flammable materials (e.g., aerosols, cleaning products, cloths) away from the cooktop.
• Цэвэрлэгээ: Always turn off and unplug the cooktop before cleaning. Allow it to cool completely.

3. Бүтээгдэхүүн дууссанview

The BLACK+DECKER BXICHCPB4BFZ Induction Cooktop features a sleek design and advanced functionalities for an enhanced cooking experience. Key features include:

• Индукцийн технологи: Provides rapid, precise heating with instant temperature control.
• Power Booster Function: Temporarily increases power to a cooking zone for faster boiling or searing.
• Modern and Functional Design: Elegant black ceramic glass surface integrates seamlessly into contemporary kitchens.
• Energy Efficiency and Safety: Heats cookware directly, keeping the cooktop surface cooler and improving energy efficiency.
• Expanded Zone (Full Zone): Allows for cooking with larger grill plates or elongated pans by combining two induction zones.
• Дижитал мэдрэгчтэй самбар: Ашиглахад хялбар мэдрэмжтэй удирдлага.
• Хамгаалалтын түгжээ: Хүүхэдтэй айлд тохиромжтой, санамсаргүй ажиллагаанаас сэргийлнэ.
• Автоматаар Пан илрүүлэх: The cooktop detects if suitable cookware is placed on the zone.
• Таймер функц: Хоол хийх нарийн хяналтанд зориулагдсан.

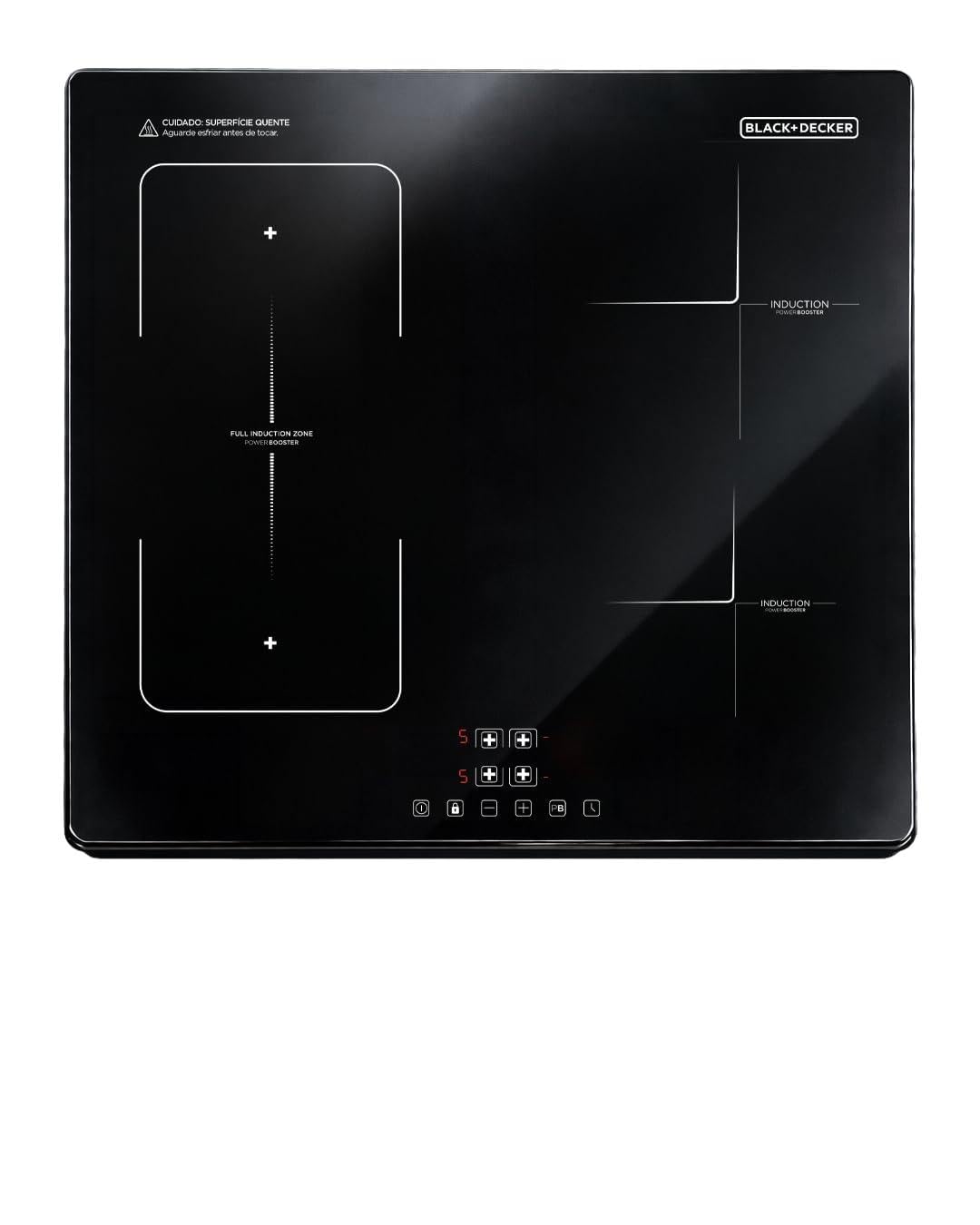

Зураг 3.1: Дээд талд view of the BLACK+DECKER BXICHCPB4BFZ Induction Cooktop, highlighting the four cooking zones and the digital control panel.

Image 3.2: Visual representation of the cooktop's main features, such as high power for faster cooking, energy efficiency, LED digital display, touch screen control, timer function, child safety lock, and automatic pan detection.

4. Тохиргоо ба суурилуулалт

The BLACK+DECKER BXICHCPB4BFZ is a built-in induction cooktop. Professional installation is highly recommended to ensure proper electrical connection and ventilation.

4.1. Савыг задлах

Carefully remove all packaging materials. Inspect the cooktop for any signs of damage. The package includes the induction cooktop unit, an installation kit, and this user manual.

4.2. Countertop бэлтгэх

Ensure your countertop is suitable for a built-in appliance. The required cut-out dimensions for installation are approximately 56 см (өргөн) x 49 см (гүн) x 5.5 см (өндөр). The overall product dimensions are 59 см (өргөн) x 52 см (гүн) x 4.5 см (өндөр). Allow sufficient clearance around the cooktop for ventilation as specified in the installation kit instructions.

4.3. Цахилгааны холболт

The cooktop operates on 220 вольт. The electrical connection must be performed by a qualified electrician in accordance with local electrical codes. Ensure the circuit can handle the total power of 7200 Вт.

Зураг 4.1: Урд view of the cooktop, illustrating its built-in design.

5. Ашиглалтын заавар

Familiarize yourself with the digital touch control panel for optimal use.

5.1. Асаах/унтраах

• To turn on: Touch the Хүч тэмдэг (O) хяналтын самбар дээр. Дэлгэц гэрэлтэх болно.
• To turn off: Touch and hold the Хүч symbol until the cooktop switches off.

5.2. Гал тогооны бүсийг сонгох болон цахилгааныг тохируулах

• Хүссэн хоол хийх бүс дээрээ индукцийн зууханд тохирох хайруулын тавгийг байрлуул.
• Touch the corresponding zone selection button (e.g., + or - next to the zone indicator).
• -г ашиглана уу + болон - Чадлын түвшинг 1 (бага)-аас 9 (өндөр) хүртэл тохируулах товчлуурууд.

5.3. Power Booster Function

• To activate: Select a cooking zone and then touch the Өсгөгч symbol (often represented by a 'P' or a specific icon). The power level will temporarily increase beyond level 9 for rapid heating.
• To deactivate: Touch the - товчлуур эсвэл Өсгөгч symbol again. The zone will revert to a lower power setting.

5.4. Таймер функц

• To set: After selecting a cooking zone and power level, touch the Цаг хэмжигч symbol. Use the + болон - товчлууруудаар хүссэн хоол хийх хугацааг тохируулна.
• The cooktop will automatically turn off the selected zone once the timer expires.

5.5. Хүүхдийн хамгаалалтын түгжээ

• To activate: With the cooktop off or on standby, touch and hold the Түгжих symbol (often a padlock icon) for a few seconds until an indicator light appears. This prevents accidental operation.
• To deactivate: Touch and hold the Түгжих symbol again until the indicator light turns off.

6. Засвар үйлчилгээ, цэвэрлэгээ

Regular cleaning and maintenance will ensure the longevity and optimal performance of your cooktop. The ceramic glass surface is designed for easy cleaning.

• Өдөр тутмын цэвэрлэгээ: After each use, ensure the cooktop is turned off and completely cool. Wipe the surface with a soft, damp даавуу болон зөөлөн угаалгын нунтаг. Цэвэр даавуугаар сайтар хатаана.
• Зөрүүд толбо: For burnt-on food or stubborn stains, use a ceramic hob scraper (plastic or specialized metal scraper) at an angle, then clean with a suitable ceramic hob cleaner. Follow the cleaner's instructions.
• Зүлгүүрээс зайлсхийх: Do not use abrasive sponges, scouring pads, or harsh chemical cleaners, as these can scratch or damage the ceramic glass surface.
• Хяналтын самбар: Хяналтын самбарыг зараар зөөлөн арчинаamp даавуу. Хяналтын хэсэгт чийг орохгүй байгаа эсэхийг шалгаарай.

7. Алдаа засах

If you encounter any issues with your cooktop, refer to the following common problems and solutions before contacting customer service:

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

9.1. Баталгаат хугацааны мэдээлэл

This BLACK+DECKER Induction Cooktop comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period. Extended warranty options, such as the 24-month extended warranty against failures and defects, may also be available for purchase.

9.2. Хэрэглэгчийн дэмжлэг

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact BLACK+DECKER customer support. Refer to the contact information provided in your product documentation or visit the official Black+Decker webтанай бүс нутагт зориулсан сайт.

Онлайн нөөцүүд: Нэмэлт мэдээлэл, дэмжлэг авахыг хүсвэл зочилно уу Black+Decker Store on Amazon.
